Description

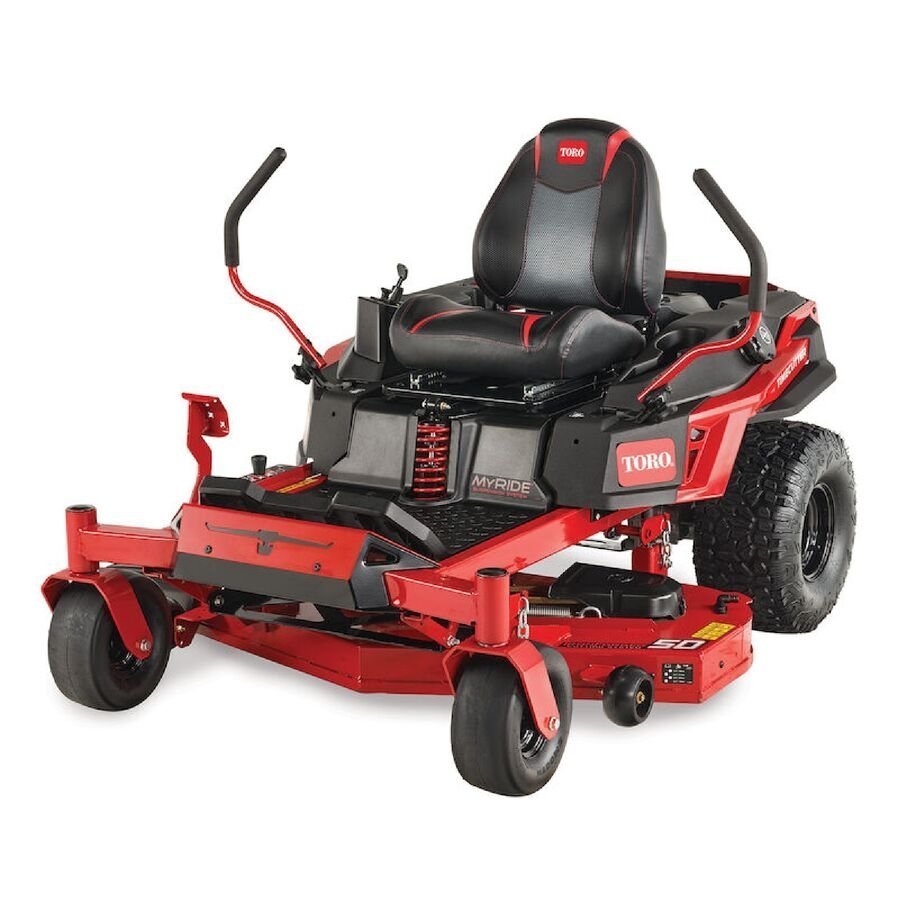

When it comes to your yard, second best just won’t cut it. That’s why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you’re done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
Specifications
Air Filter
Standard Kawasaki Air Cleaner
Anti Scalp Wheels
3 Standard
Armrests
Optional
Bagger Capacity
4.9 bushels
Blade Tip Speed
17,600 ft/min / 5,364 m/min
Box Dimensions
82.0 in. x 57.0 in. x 35.0 in. / 208.3 cm x 144.8 cm x 88.9 cm
CARB Compliant
Not CARB Compliant
Carrier Frame
3 in. x 1.5 in. x 0.120 in. (7.6 cm x 3.8 cm x 0.3 cm) Wall Tubular Steel
Caster Tires
12 in. x 6 in. – 5 in. (30.5 x 12.2 cm – 12.7 cm) Pneumatic
Clutch
Electromagnetic
Comfort Platform
MyRIDE® Suspension System
Cooling System
Air Cooled
Crankshaft
1″ (25 mm) w/Steel Protector
Cup Holder
Standard
Cutter System
Steel Cutting Blade
Deck Design
10-Gauge steel IrongForged®
Deck Material
10 Gauge Steel
Deck Size
50 in / 127 cm
Discharge Chute
Side
Drive System
HYDRO
Drive Tires
20 in. x 10 in. – 8 in (51 cm x 26 cm – 20.3 cm)
Drive Type
Rear-Wheel Drive
Engine
23 hp Kawasaki FR691V 726cc
Engine Brand
Kawasaki
Engine Displacement (cc)
726 cc
Engine Horsepower
23.0 hp
Engine Power (kW)
17.2 kW
Foot Operated Height of Cut
Standard
Forward Ground/Transport Speed
Up to 7.0 mph / 11.2 kph
Forward Mowing Speed
Up to 7.0 mph / 11.2 kph
Frame
3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
Fuel Capacity
5 gal. / 18.9 L / 20 Qt.
Fuel Type
Gasoline
Greasable Bearings
Yes
Height of Cut
1.5 – 5.0 in. / 3.8 – 12.7 cm
Hitch Bracket
Standard
Hour Meter
Optional
Hydraulic Drive
Standard
Lighting
Optional
Number of Blades
3
Product Type
TimeCutter Max MyRide
Product Use
Residential
Recommended Oil Type
10W-30
Roll-Over Protection System (ROPS)
Optional
Seat
19″ Gaming Style
Spindle Bearings
Maintenance-free
Spindle Housing
Cast-Aluminum
Start Type
Electric
Steering Controls
Twin Lever
Steering Dampeners
Standard Dampers
Terrain Type
Flat with Obstacles

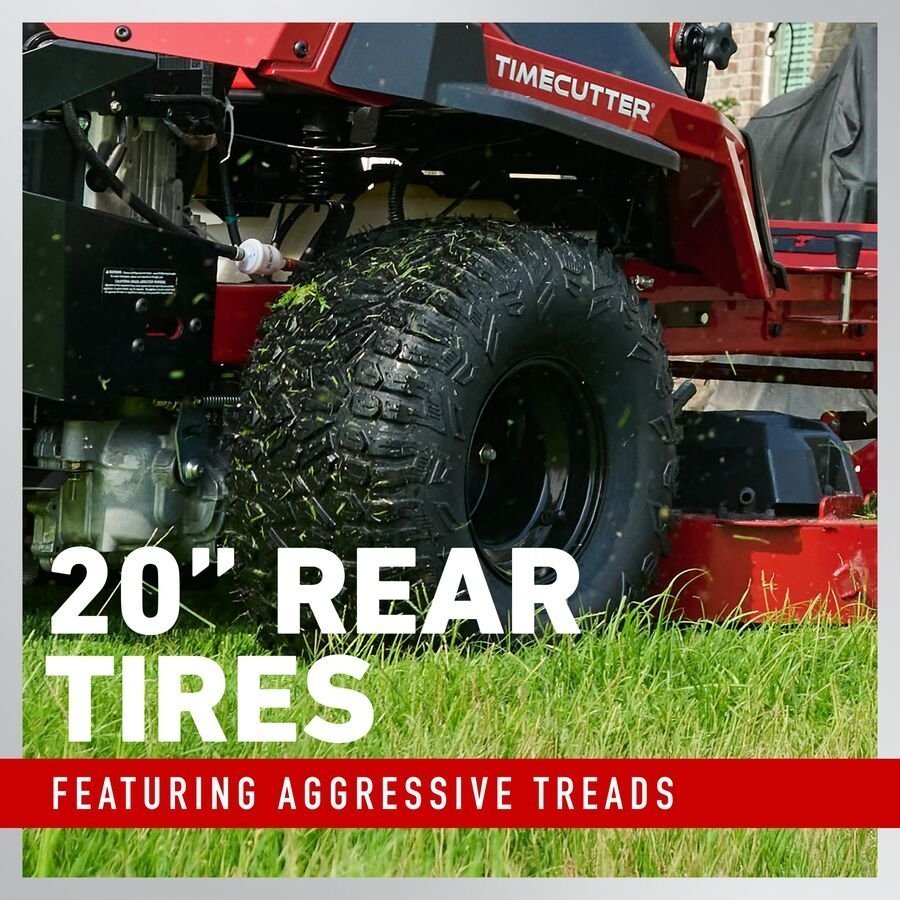

Tires
12 in. x 6 in. (30.5 cm x 15.2cm) Front, 20 in. x11 in. (55.8 cm x 27.9 cm) Rear
Tow Capacity
Combined machine, user, towed weight may not exceed 1,000 lbs.
Transmission
Dual Hydrostatic HG-EZT2200
Washout Port
Standard
Weight
684 lbs / 310.3 kg
