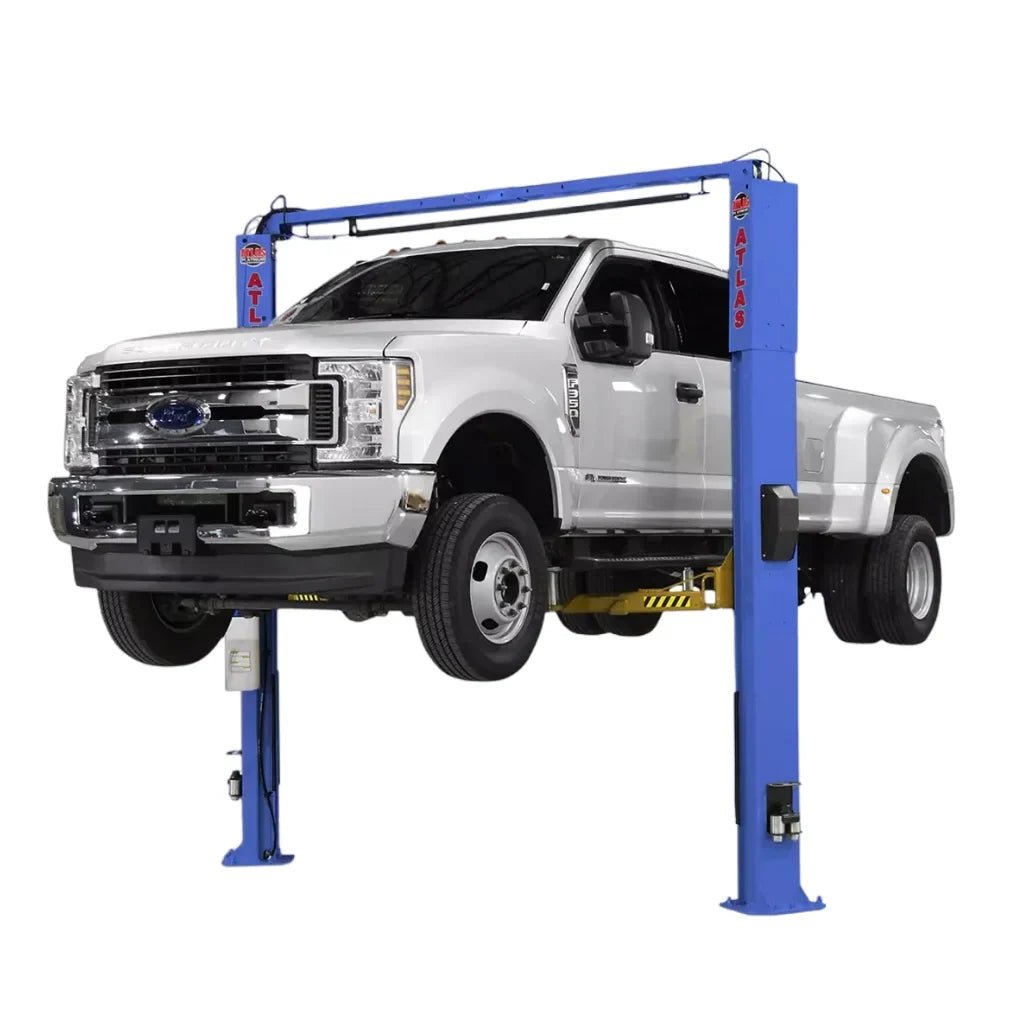

Name: Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift
SKU: 52301
Availability: InStock

Atlas® ATTD-OHX10000X Specifications
Capacity	10,000 LB.
Overall Height	152″ (12’ 8”)
Overall Floor Width	144 3/8″ (12’ 3/8″)
Outside Column to Outside Column	136″ (11’ 4″)
Maximum Lift Height (Without Adapters)	74 3/4″
Maximum Lift Height (With Adapters)	85 3/4″
Minimum Arm Height	4 1/2″
Inside Column	118 1/4” (9’ 10 1/4”)
Drive Thru	106 7/8” (8’ 10 7/8”)
Column Size	9 1/8″ x 11″
Column Thickness of Steel	5mm
Base Of Lift	18 1/2″ x 21 1/2″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,665 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift
