Name: Atlas PV10PX 10,000 lb Overhead 2-Post Lift Car
SKU: 52306
Availability: InStock

Atlas® ATTD-PV10PX Specifications
Capacity	10,000 LB.
Overall Height	143 1/8″ (11’ 11 1/8”) or 146 7/8” (12’ 2 7/8”)
Overall Floor Width	137 1/2″ (11’ 5 1/2”)
Outside Column to Outside Column	125″ (10’ 5″)
Maximum Lift Height (Without Adapters)	71 7/8″

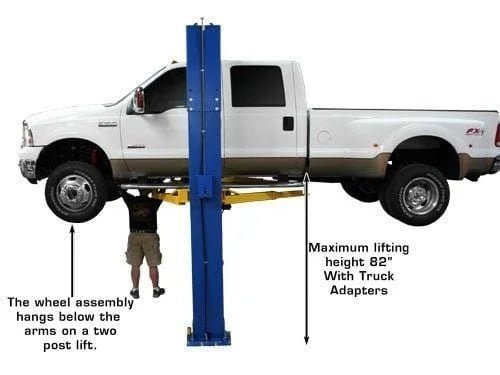

Maximum Lift Height (With Adapters)	82 7/8″
Minimum Arm Height	4 3/8″
Inside Column	110 3/8” (9’ 2 3/8”)
Drive Thru	96” (8’)
Column Size	7 1/2″ x 14 1/2″
Column Thickness of Steel	6mm
Base Of Lift	17 1/2″ x 20 1/2″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,905 LBS.
Adapter Heights	4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size	1.5”

Requires a minimum of 4″ of concrete with a 3000 psi. rating
