Description

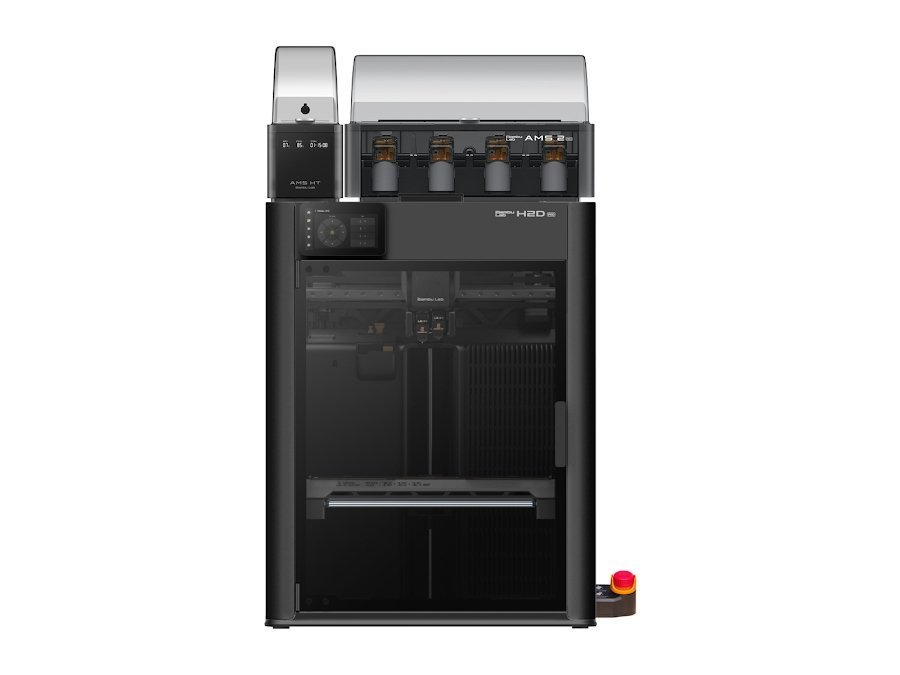

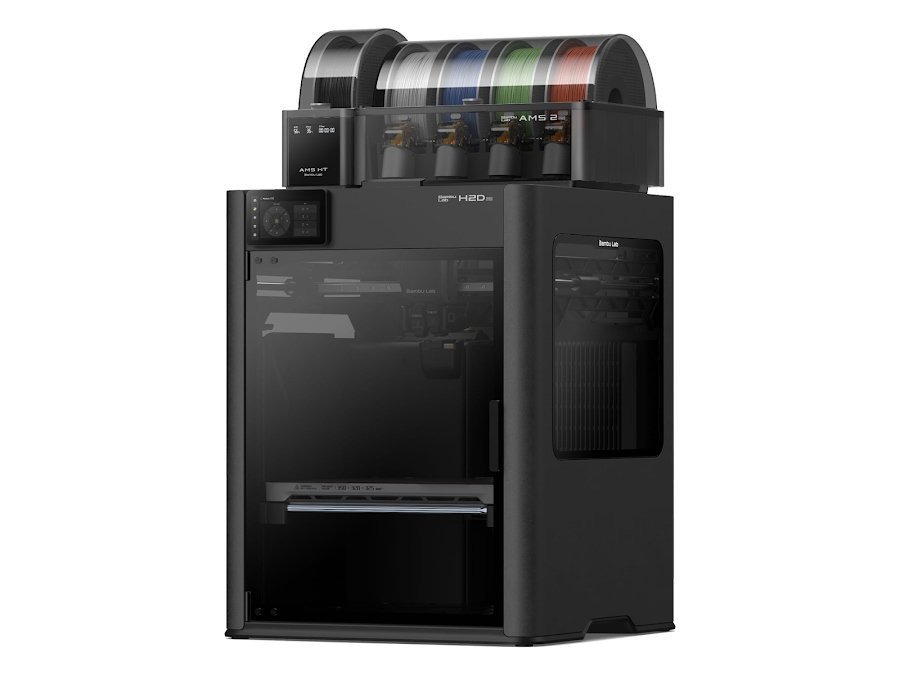

Experience superior production results with the Bambu Lab H2D Pro 3D Printer—engineered for professionals who demand quality, security, and reliability. Unlock advanced high-temperature material versatility, seamless enterprise integration, and increased productivity with outstanding print quality. Featuring a 350°C dual-nozzle system, secure Ethernet and WPA2-Enterprise connectivity, Vision Encoder Calibration, and more, the H2D Pro empowers your organization to achieve exceptional 3D prints with confidence and efficiency.
Key Features of the Bambu Lab H2D Pro 3D Printer:
350°C dual-nozzle system for advanced material versatility
Tungsten carbide nozzle for exceptional durability and lifespan
65°C heated chamber ensures strong, warp-free prints
Secure Ethernet and WPA2-Enterprise Wi-Fi connectivity options
Physical network killswitch meets strict enterprise security standards
Included Vision Encoder delivers ultra-precise 50µm motion accuracy
Adaptive air circulation and HEPA filtration for safer environment operation

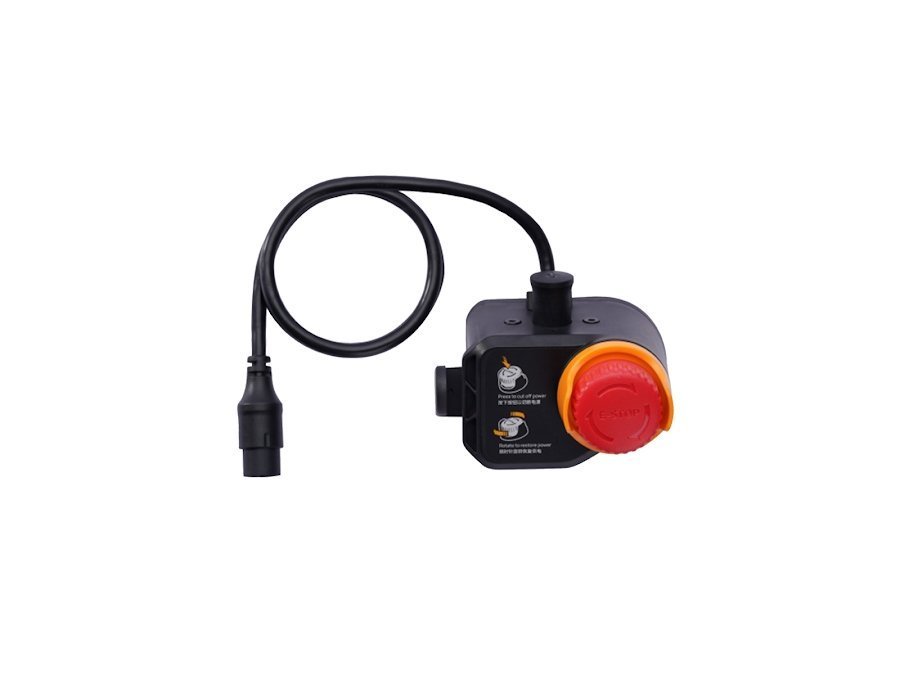

Includes an emergency button to meet industrial safety requirements
SPECIFICATIONS
GENERAL
Technology
Fused Deposition Modeling (FDM)
Motion System
CoreXY
Assembly
Fully-Assembled
Made in
China
MACHINE DIMENSIONS
Outer Dimensions (w/o AMS)*
(L × W × H)
492×514×626mm
(19.4″×20.2″×24.6″)
Net Weight (w/o AMS)**
31kg (68.4lb)
PRINTING PARAMETERS
Build Volume
(L × W × H)
SINGLE Extrusion
325mm × 320mm × 325mm
(12.79″×12.59″×12.79″)
DUAL Extrusion
300mm × 320 × 325mm
(11.81″×12.59″×12.79″)
Total Volume for Two Nozzles
350mm × 320mm × 325mm
(13.77″×12.59″×12.79″)
Filament Diameter
1.75mm
Extrusion
Dual Extrusion
Extruder Motor
Bambu Lab High-precision Permanent Magnet Synchronous Motor
Extruder Gear
Hardened Steel
Hotend
All-Metal
Nozzle Material
Tungsten Carbide Nozzle
Max. Nozzle Temperature
350°C
Nozzle Size
0.4mm
Max Build Plate Temperature
120°C
Build Surface
Flexible Textured PEI Plate
OPTIONAL
Smooth PEI Plate
Max Toolhead Speed
1000mm/s
Max Toolhead Acceleration
20,000mm/s²
Max Flow Rate
(Standard Flow Hotend)
40mm³/s*
Active Chamber Heating
Supported
Max Chamber Temperature
65°C
Pre-Filter Grade
G3
HEPA Filter Grade
H12
AIR PURIFICATION
Activated Carbon Filter Type
Granulated Coconut Shell
VOC Filtration
Superior
Particulate Matter Filtration
Supported
COOLING
Part Cooling Fan
Closed Loop Control
Cooling Fan for Hotend
Closed Loop Control
Main Control Board Fan
Closed Loop Control
Chamber Exhaust Fan
Closed Loop Control
Chamber Heat Circulation Fan
Closed Loop Control
Auxiliary Part Cooling Fan
Closed Loop Control
PRINTER FEATURES
Enclosed
Yes—Plastic & Glass
Frame
Aluminum and Steel
Filament Cutter
Built-In
Build Plate
Magnetic, Flexible
Bed Leveling
Fully-automated
Emergency Button
✓
Swappable Nozzle System
✓
Power Loss Recovery
✓
CAMERA(S)
Live View Camera
Built-in; 1920 × 1080
Nozzle Camera
Built-in; 1920 × 1080
BirdsEye Camera
Built-in; 3264 × 2448
Toolhead Camera
Built-in; 1920 × 1080
SENSOR(S)
Door Sensor
Supported
Filament Runout Sensor
Supported
Filament Tangle Sensor
Supported
Filament Odometry
Supported with AMS
COMPATIBLE MATERIALS
Third-Party Filament
Yes***
Supported
PLA, PETG, TPU, PVA, BV OH, ABS, ASA, PC, Nylon / PA, PET, PPS,
PPA, and Carbon/Glass Fiber Reinforced Filament variants
of the previously listed materials
COMMUNICATION
Display
5″ Capacitive Touch Screen
Display Resolution
720 × 1280
Storage
Built-in 8 GB EMMC and USB Port
Control Interface
Touchscreen, mobile App, PC App
Motion Controller
Dual-core Cortex-M4 and Single-core Cortex-M7
Applicator Processor
Quad-core 1.5 GHz ARM A7
Neural Processing Unit
2 TOPS
NETWORK CONTROL
Connectivity
Wi-Fi, Ethernet
Network Kill Switch
Wi-Fi & Ethernet
Wi-Fi Frequency Range
2400 MHz – 2483.5 MHz
Wi-Fi WPA2-Enterprise
EAP-PEAP
EAP-TLS
TAP-TTLS
Wi-Fi Transmitter Power (EIRP)
≤ 21.5 dBm (FCC)
≤ 20 dBm (CE/SRRC)
Wi-Fi Protocol
IEEE 802.11 b/g/n
Ethernet Socket
RJ45
Ethernet Speed
100 Mbps / Full Duplex
Removable Network Module
Yes
802.1X Network Access Control
Yes
SOFTWARE
Slicing Software
Bambu Studio
Supports third-party slicers which export standard
G-code (i.e. Super Slicer, PrusaSlicer and Cura, etc.),
but certain advanced features may not be supported.
Compatible OS
Windows, MacOS
Supported File Format(s)
STL, 3MF
POWER REQUIREMENTS
Input Voltage
100 – 120 VAC / 200 – 240 VAC, 50/60 Hz
Max Power**
1320 W@110 V
2200 W@220 V
Average Power
1050 W@110 V
1050 W@220 V
