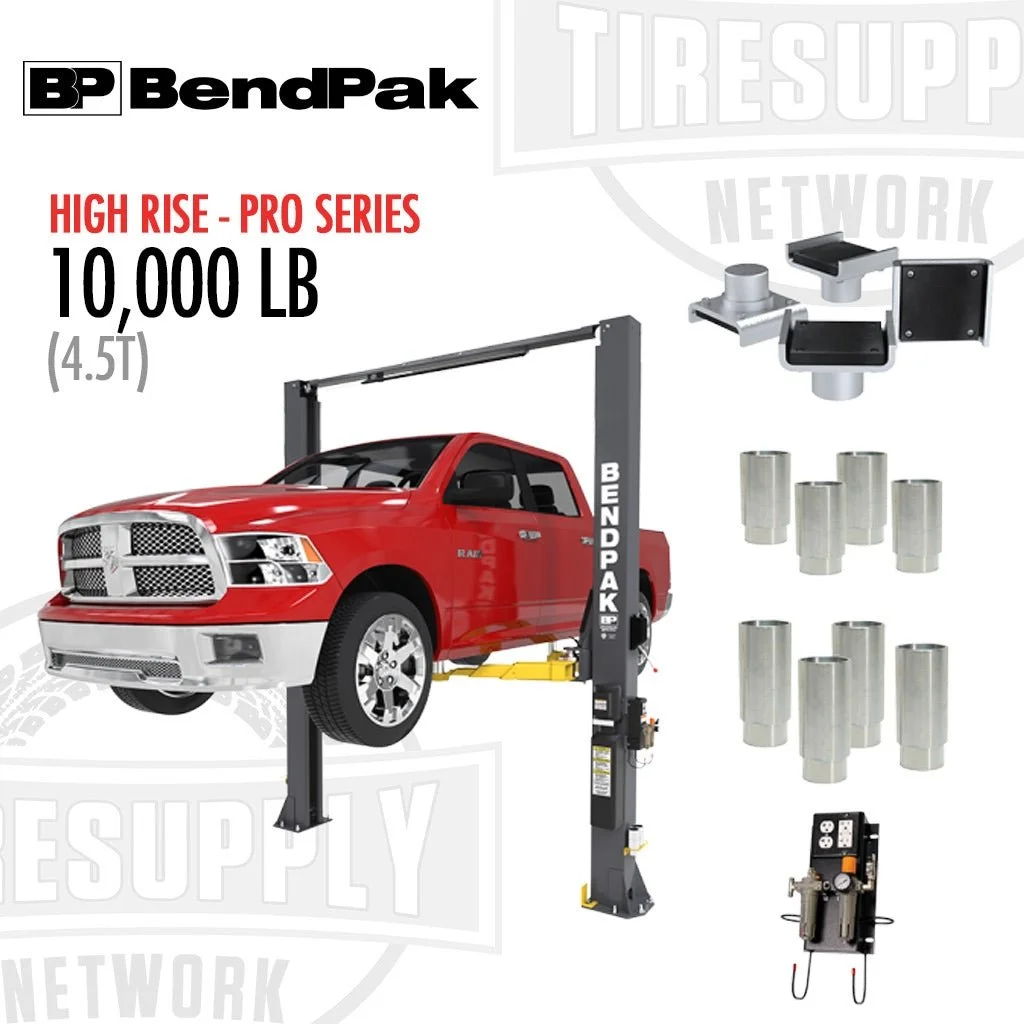

BendPak Pro-Series 10APX High-Rise Two Post Car Lifts

The next generation of two-post lifts – now with an increased height! The 10AP Series is built with the future in mind, and has all the features you’ll need to service vehicles as effectively as possible. This revolutionary lift can handle Electric Vehicles effortlessly and can adapt to both symmetrical and asymmetrical configurations.

This product is protected by patent in the United States (Patent No. US11820632B2), Canada, China, and other countries where corresponding patent protection has been sought.

10APX Pro Series

• Durable powder coat finish
• Expandable top beam accommodates wide or narrow drive-thru configurations
• Double-telescoping screw pads offer increased versatility
• Padded overhead safety shutoff bar
• Exclusive Bi-Metric™ arm design for more versatile arm positioning
• Single-point safety release
• Drop-end arms provide a lower pad height
• Dual hydraulic direct-drive cylinders
• Oversized 53″ & 59″ tall carriages for superior strength and durability
• Electric / hydraulic HVLP power system
• Self-lubricating dura-glide UHMW polyethylene bearing system
• Safety locks in each column spaced every 3″
• Automatic arm restraints withstand over 2000-pounds of side force
• 3/8″(10mm) High-strength multi-strand galvanized steel equalizing cable
• Oversized cable sheave diameter reduces cable fatigue
• Four triple-telescoping arms
• ALI certified

WSA-100

• Easy to install
• Adapts to any two-post lift and four-post lift
• Electrical outlets equipped with 20 amp industrial GFI protection
• Electrical outlets located above the air service to prevent moisture damage and tangling
• Air service through 2 outlets: one lubricated for tire inflation and one for pneumatic tools
• Air service filter element and lubricator filler port are easily accessible
• Nickel-plated ball valve shutoff
• Powder-coated finish for durability and long life
• Four 110V GFI outlets
• Oiler
• Air supply
• Pressure gauge
• Storage hooks for hose and tools
• Regulator / filter
• Air inlet

Frame Cradle Pads

• Set of 4
• 60mm pin

Medium Adapter (60mm Pin)

• Set of 4
• 2.5”

Tall Adapter (60mm Pin)

• Set of 4
• 5”

WARRANTY: 5-2-1

• 5 Years Structure
• 2 Years Hydraulics
• 1 Year Parts & Labor
