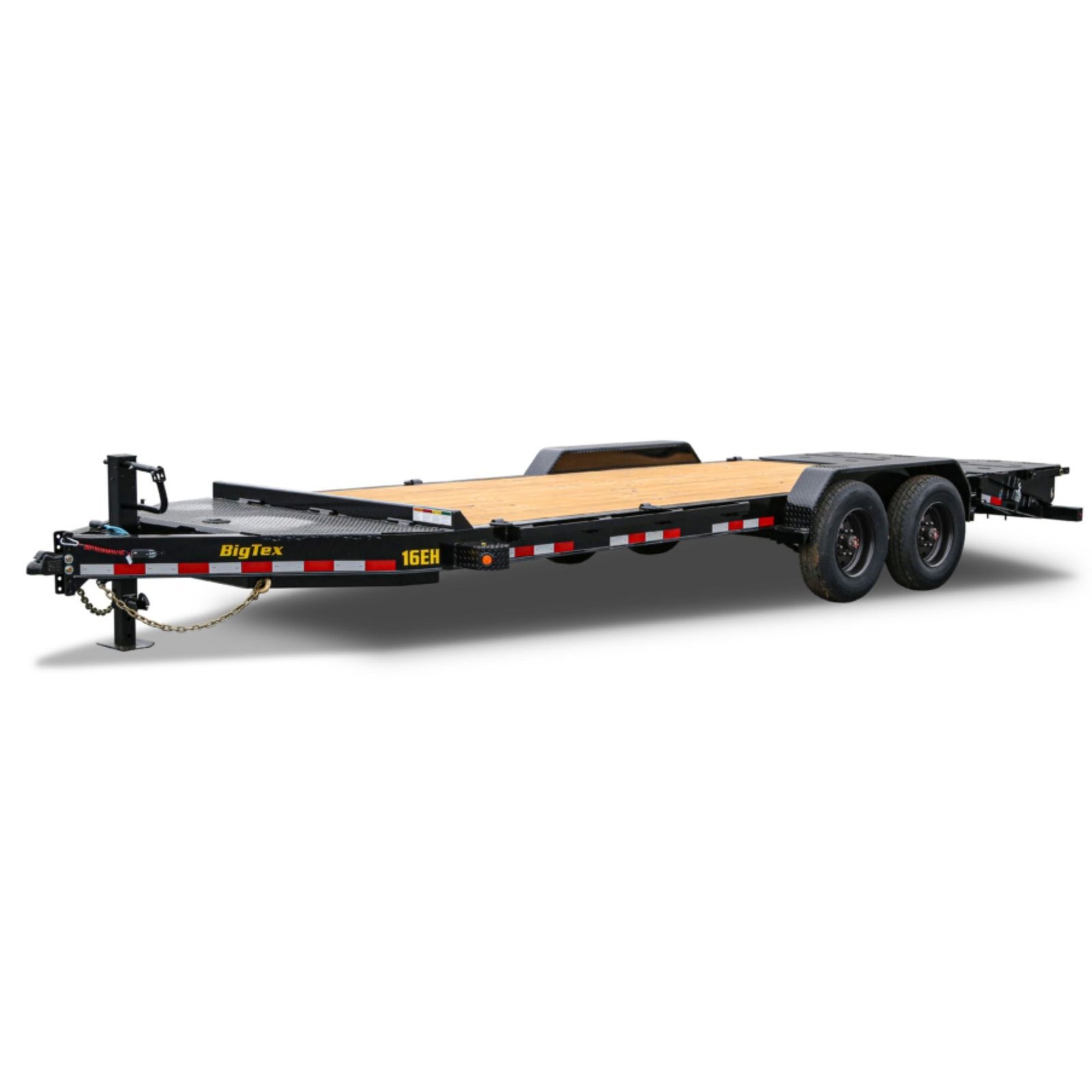

Big Tex Heavy Duty I-Beam Equipment Trailer | 16EH

Big Tex Heavy Duty I-Beam Equipment Trailer | 16EH

Price range: $1,199.00 through $1,499.00

-

SKU: 7325311500385-big-tex-heavy-duty-i-beam-equipment-trailer-16eh Categories: , , Tag:

Description

Part of the all-new X-Series, the 16EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 16EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It’s enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 16EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.

Standard Feature Available Options
Axles 2 – 8,000# Premium, Cambered Axles with Oil Bath and Valcrum Caps
Brakes Forward Self-Adjusting Electric Brakes on All Hubs
Suspension Multi-Leaf Slipper Spring w/ Equalizer
Coupler Adjustable 2-5/16” Demco EZ Latch
  • Adjustable Pintle in Channel in Lieu of Coupler
  • Adjustable 2-5/16″ Demco EZ Latch Gooseneck Coupler
Safety Chains 3/8″ Grade 70 w/ Safety Latch Hook (2 ea)
Jack 12,000# Drop-Leg Jack (Side Wind)
Frame 8″ I-Beam
Cross-Members 3″ Channel on 16″ Centers
Front Stop Rail 3/16″ Fabricated Front Stop Rail
Floor APEX Fortified Lumber
Fenders 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)
Ramps 5′ Tall, 16″ Stand Up Rams (Spring Assisted)
  • 36″ Wide Mega Ramps (D3 Models Only)
  • Super-Wide Ramps (60″ Tall x 30″ Wide) w/ Blackwood Pro-Filled Dovetail
Dovetail 40” Cleated Dovetail
Stake Pockets Stake Pockets Along Both Sides (Quantity Varies by Length)
Trailer Plug 7-Way RV
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring Sealed, Modular Cold-Weather Wiring Harness
Tires ST215/75 R-17.5 Load Range H
Bolt Pattern 8-Lug
Spare Mount Front Spare Tire Mount
Spare Tire Not Included Spare Tire (ST215/75 R-17.5 LR-H)
Paint Color Black
  • Red
  • Grey
  • White
  • Desert Tan
  • Jet Blue
  • Slime Green
  • Implement Green
  • Equipment Orange
  • Medium Yellow
Rubrail Rub Rail Along Both Sides
Tie-Downs (6) 5/8″ D-Rings
Break-Away Kit Complete Breakaway System w/ Zip Breakaway Cable
Storage Lockable Toolbox Between Risers on Gooseneck Model Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only)
Steps & Handles Convenient Side-Step to Access Deck
Model 16EH-18D3A 16EH-20D3A 16EH-22D3A 16EH-24D3A 16EHG-20D3A 16EHG-22D3A 16EHG-24D3A
Pull Type Bumperpull Bumperpull Bumperpull Bumperpull Gooseneck Gooseneck Gooseneck
GVWR 17500 lbs 17500 lbs 17500 lbs 17500 lbs 20000 lbs 20000 lbs 20000 lbs
GAWR (Ea. Axle) 8000 lbs 8000 lbs 8000 lbs 8000 lbs 8000 lbs 8000 lbs 8000 lbs
Empty Weight 3190 lbs 3320 lbs 3480 lbs 3650 lbs 3700 lbs 3860 lbs 4040 lbs
Cargo Capacity 14310 lbs 14180 lbs 14020 lbs 13850 lbs 16300 lbs 16140 lbs 15960 lbs
Bed Length 18′ 20′ 22′ 24′ 20′ 22′ 24′
Bed Width 83″ 83″ 83″ 83″ 83″ 83″ 83″
