Description

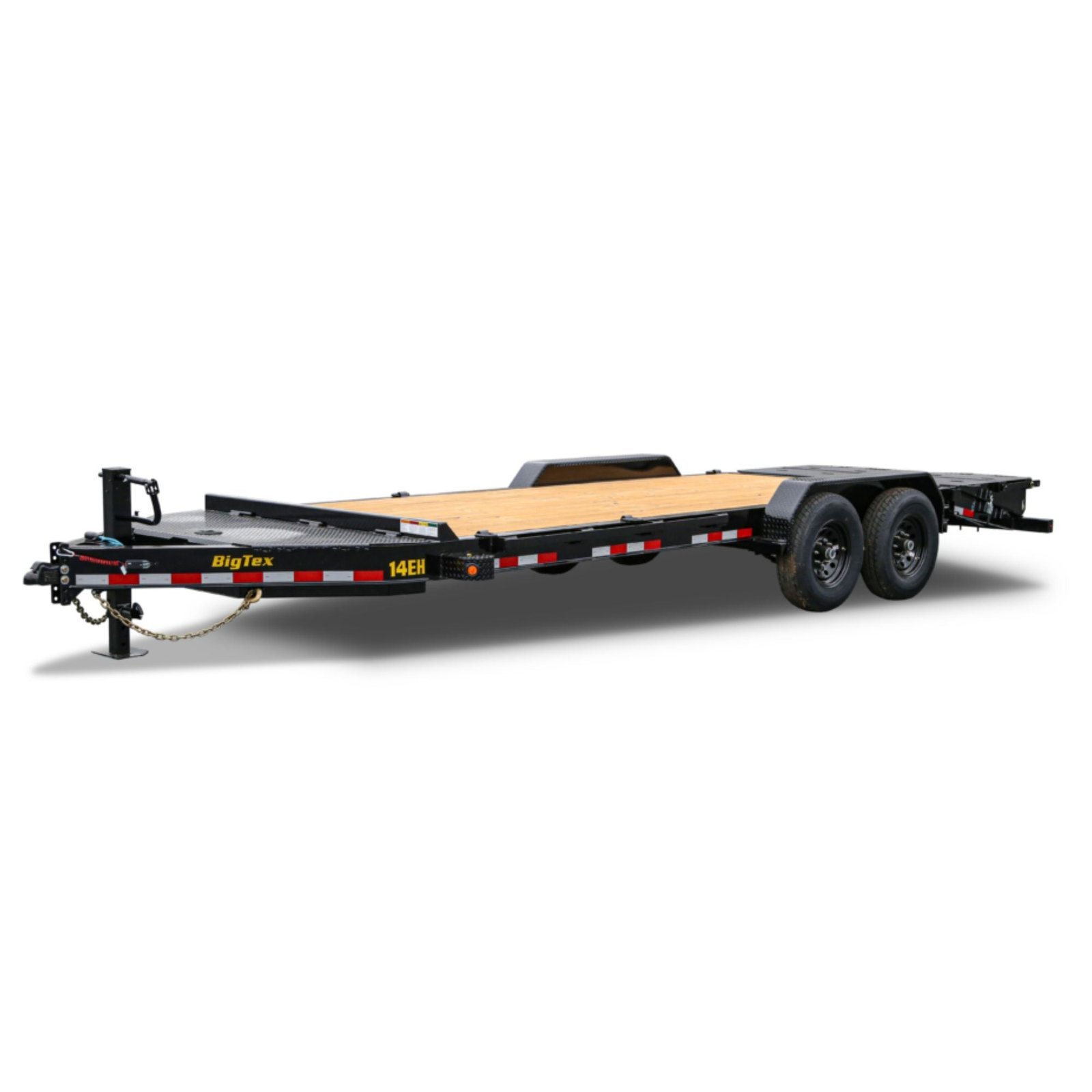

Part of the all-new X-Series, the 14EH Equipment Trailer from Big Tex Trailers is engineered for professionals who demand durability and innovation. The 14EH features APEX Fortified Lumber for superior deck durability and a Mega-Sized Toolbox for added storage capacity. It’s enhanced with a Full-Length Rub Rail, D-Rings, and Stake Pockets, providing multiple secure tie-down options for a variety of cargo. The 14EH revolutionizes loading and unloading with its optional Self-Stabilizing Mega Ramps, offering unparalleled flexibility for all your hauling needs.
| Standard Feature | Available Options | |
| Axles | 2 – 7,000# Premium, Cambered Axles with Quick-Lubricating Hubs | |
| Brakes | Forward Self-Adjusting Electric Brakes on All Hubs | |
| Suspension | Multi-Leaf Slipper Spring w/ Equalizer | |
| Coupler | Adjustable 2-5/16” Demco EZ Latch |
|
| Safety Chains | 3/8″ Grade 70 w/ Safety Latch Hook (2 ea) | |
| Jack | 12,000# Drop-Leg Jack (Side Wind) | |
| Frame | 8″ I-Beam | |
| Cross-Members | 3″ Channel on 16″ Centers | |
| Front Stop Rail | 3/16″ Fabricated Front Stop Rail | |
| Floor | APEX Fortified Lumber | |
| Fenders | 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable) | |
| Ramps | 5′ Tall, 16″ Stand Up Rams (Spring Assisted) |
|
| Dovetail | 40” Cleated Dovetail | |
| Stake Pockets | Stake Pockets Along Both Sides (Quantity Varies by Length) | |
| Trailer Plug | 7-Way RV | |
| Lights | L.E.D. D.O.T. Stop, Tail, Turn & Clearance | |
| Wiring | Sealed, Modular Cold-Weather Wiring Harness | |
| Tires | ST235/80 R-16 Load Range E Radial Tires | Tire Upgrade (ST235/80 R-16 LR-G) |
| Bolt Pattern | 8-Lug | |
| Spare Mount | Front Spare Tire Mount | |
| Spare Tire | Not Included | Spare Tire & Wheel (ST235/80 R-16 LR-E) |
| Paint Color | Black |
|
| Rubrail | Rub Rail Along Both Sides | |
| Tie-Downs | (6) 5/8″ D-Rings | |
| Break-Away Kit | Complete Breakaway System w/ Zip Breakaway Cable | |
| Storage | Lockable Toolbox Between Risers on Gooseneck Model Mega-Sized Integrated Tongue Box with Lockable Lid (Bumper Pull Only) | |
| Steps & Handles | Convenient Side-Step to Access Deck |
| Model | Pull Type | GVWR | GAWR (Ea. Axle) | Empty Weight | Cargo Capacity | Bed Length | Bed Width |
| 14EH-16D3A | Bumperpull | 15400 lbs | 7000 lbs | 2860 lbs | 12540 lbs | 16′ | 83″ |
| 14EH-18D3A | Bumperpull | 15400 lbs | 7000 lbs | 3020 lbs | 12380 lbs | 20′ | 83″ |
| 14EH-20D3A | Bumperpull | 15400 lbs | 7000 lbs | 3150 lbs | 12250 lbs | 20′ | 83″ |
| 14EH-22D3A | Bumperpull | 15400 lbs | 7000 lbs | 3330 lbs | 12070 lbs | 22′ | 83″ |
| 14EHG-20D3A | Gooseneck | 15900 lbs | 7000 lbs | 3740 lbs | 12160 lbs | 22′ | 83″ |
| 14EHG-22D3A | Gooseneck | 15900 lbs | 7000 lbs | 3940 lbs | 11960 lbs | 22′ | 83″ |
| 14EHG-24D3A | Gooseneck | 15900 lbs | 7000 lbs | 4140 lbs | 11760 lbs | 22′ | 83″ |
