Description

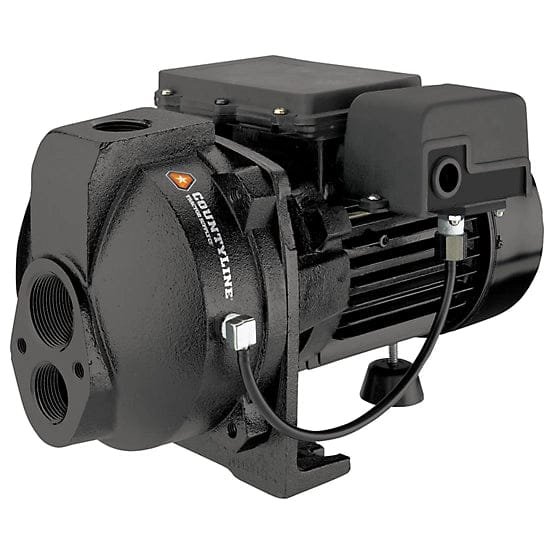

The CountyLine 1/2 HP 1-1/4 in. Convertible Cast Iron Jet Pump delivers water from 70 ft. or less. Featuring a rugged cast iron construction, this jet pump includes a pressure regulator, pressure gauge and ejector kit for 4 in. wells or larger. The jet pump comes backed by a 1 year warranty for purchasing assurance. It is a powerful 10 GPM, 115V/230V and 1/2 HP jet pump.
- 1/2 HP
- Maximum depth to water: 70 ft.
- 115V/230V
- Maximum GPM: 10 GPM
- Suction port size: 1-1/4 in. NPT
- Outlet port size: 1 in. NPT
- Dimensions: 17-1/3 in. x 13-1/3 in. x 10-4/9 in.
- Weighs 38 lb.
- Cast iron body offers enhanced durability
- CSA-approved
| Brand | CountyLine |
| Country of Origin | Imported |
| Amperage | 7 115V 3.5 230V |
| Body Material | Cast iron |
| Compatible Pipe Material | Other |
| Compatible Well Diameter | 1-1/4 in. NPT |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 10 GPM |
| Discharge Rate at 25 ft. | 3.5 GPM |
| Discharge Rate at 50 ft. | 2.5 GPM |
| Features | CSA Approved |
| Head Pressure | 65 PSI |
| Horsepower | 1/2 HP |
| Impeller Material | Glass-filled polycarbonate |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 10 GPM |
| Maximum Head Lift | 70 ft. |
| Maximum Operating Depth | 70 ft. |
| Maximum Operating Temperature | 77 degrees F |
| Minimum Operating Temperature | 32 degrees F |
| Power Type | Electric |
| Product Height | 11 in. |
| Product Length | 18 in. |
| Product Weight | 38 lb. |
| Product Width | 14 in. |
| Motor Type | TEFC |
| Voltage | 115V230V |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | CL520 |
