Description

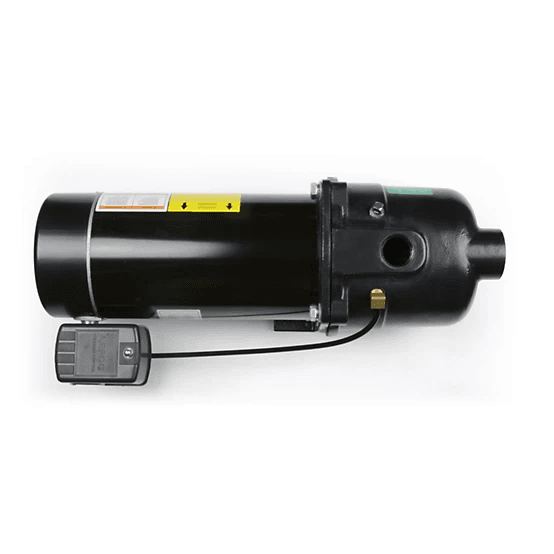

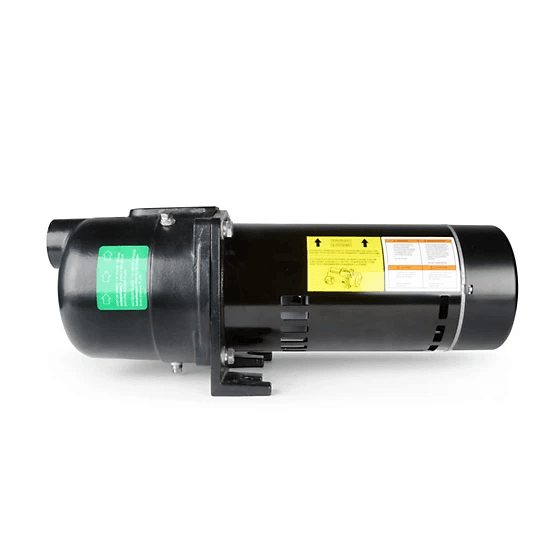

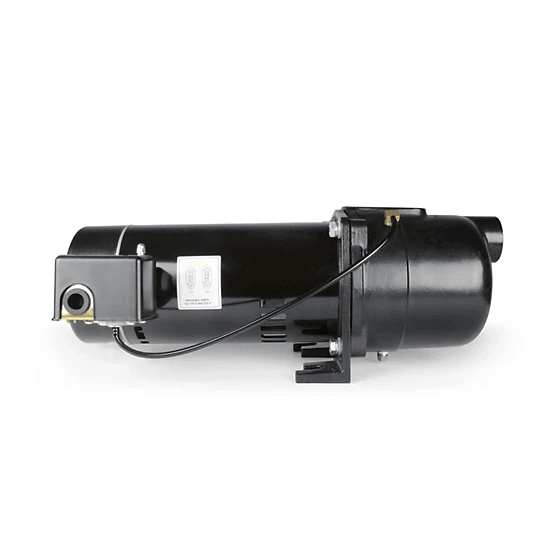

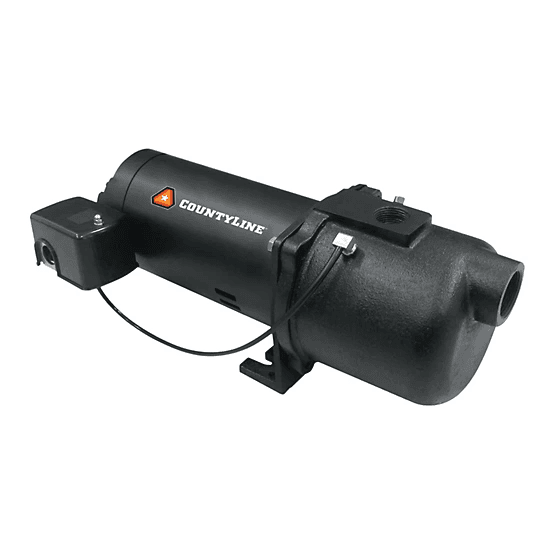

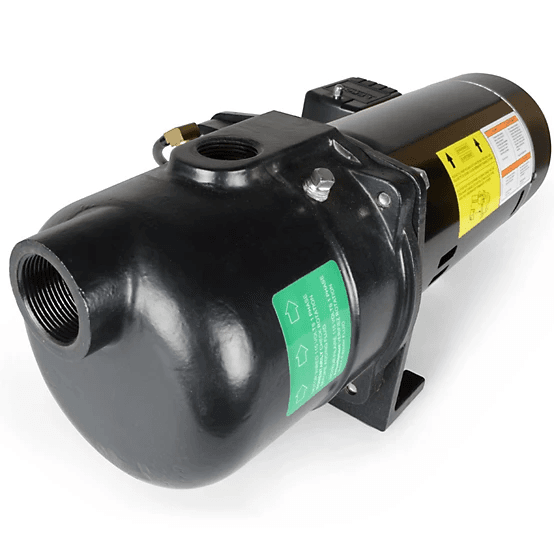

The CountyLine 1/2 HP 115/230V Cast-Iron Shallow Well Jet Pump delivers superior performance at depths to water of 25 ft. or less. Featuring rugged cast-iron construction and a heavy-duty, dual-voltage motor, this jet pump is designed for long-lasting, reliable use. It’s backed by a 2 year warranty.To install the jet pump, plumbing skills are required.
- Pumps 8 GPM at 0 degrees lift; 6 GPM at 10 ft. lift
- Powered by a heavy-duty, 1/2 HP dual-voltage motor
- Shallow well jet pump delivers superior performance at depths to water of 25 ft. or less
- Rugged cast-iron construction ensures lasting use
- Moderate level installation (plumbing skills required)
- For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee and PVC cement may be needed (sold separately)
- Backed by a 2-year warranty
| Brand | CountyLine |
| Country of Origin | Imported |
| Amperage | 12.2-6.1 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 3 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 7 GPM |
| Discharge Rate at 25 ft. | 4.5 GPM |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 1/2 HP – pumps up to 7 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor has Corrosion-resistant Nozzle and Venturi 11/4 in. Suction, 1 in. Discharge |
| Head Pressure | 40 PSI |
| Horsepower | 0.5 HP |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 8.1 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 13.15 in. |
| Product Length | 21.65 in. |
| Product Weight | 38.3 lb. |
| Product Width | 11.57 lb. |
| Motor Type | PCS |
| Voltage | 115V230V |
| Warranty | 1 year |
| Manufacturer Part Number | CL5SWJ |
