Description

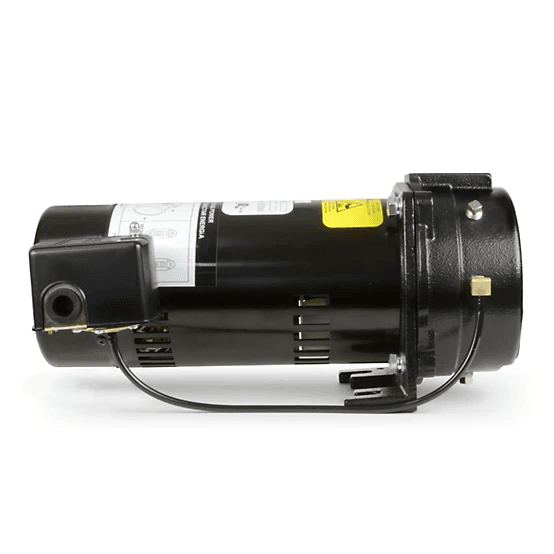

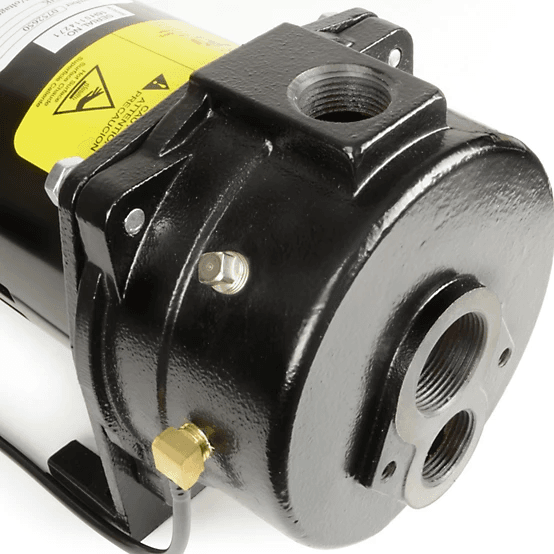

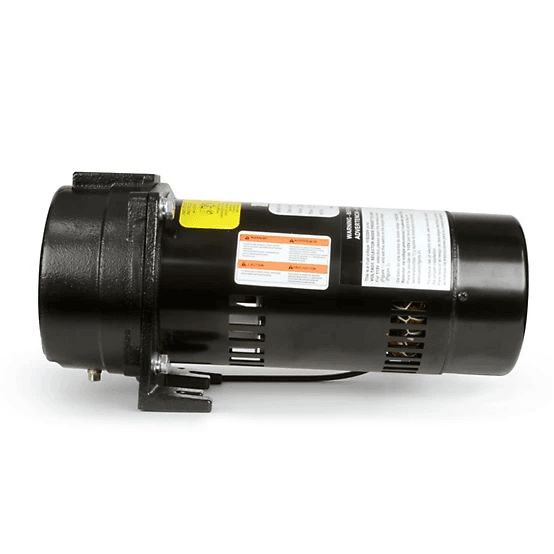

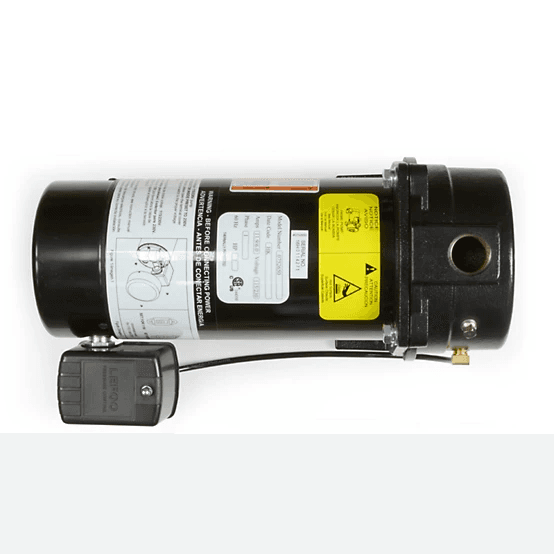

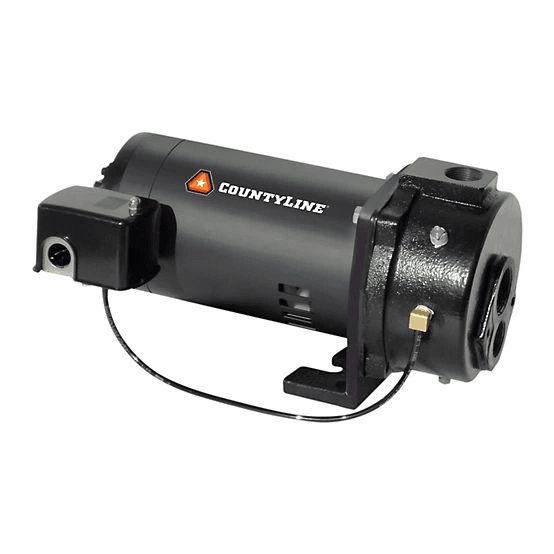

The CountyLine 1 HP Cast-Iron Deep/Convertible Well Jet Pump delivers superior performance at depths to water of 70 ft. or less. Featuring rugged cast-iron construction and a heavy-duty, dual-voltage motor, this jet pump is designed for long-lasting, reliable use. To install the jet pump, plumbing skills are required.
- Convertible operation: shallow well or deep well
- Powered by a heavy-duty, 1/2 HP dual-voltage motor
- Jet pump delivers superior performance at depths to water of 70 ft. or less
- Rugged cast-iron construction ensures lasting use
- Moderate level installation (plumbing skills required)
- Includes ejector kit
- For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee, PVC cement and pressure tank may be needed (sold separately)
- Backed by a 2-year warranty
| Brand | CountyLine |
| Country of Origin | Imported |
| Amperage | 11.9 Amp -6 Amp |
| Body Material | Cast iron |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Discharge Rate at 0 ft. | 14.8 GPM |
| Discharge Rate at 25 ft. | 8.7 GPM |
| Discharge Rate at 50 ft. | 5 GPM |
| Features | 1 HP – pumps up to 9.0-14.8 GPM Dual Voltage- 115/230V (Factory set at 230V) Built-in Overload Motor, Well Injector Kit included (Well Injector Casting, Jet Nozzle, Venturi Tubes,and Hardware) 1-1/4 in. Suction, 1 in. Discharge |
| Horsepower | 1 HP |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 14.8 GPM |
| Maximum Head Lift | 90 ft. |
| Maximum Operating Depth | 90 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 13.15 in. |
| Product Length | 21.65 in. |
| Product Weight | 46.74 lb. |
| Product Width | 11.57 in. |
| Motor Type | PSC |
| Voltage | 115-230V |
| Warranty | 2 year |
| Manufacturer Part Number | CL10CWJ |
