Description

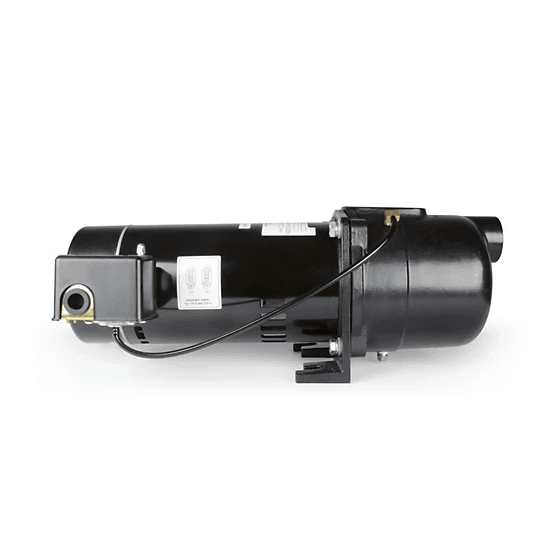

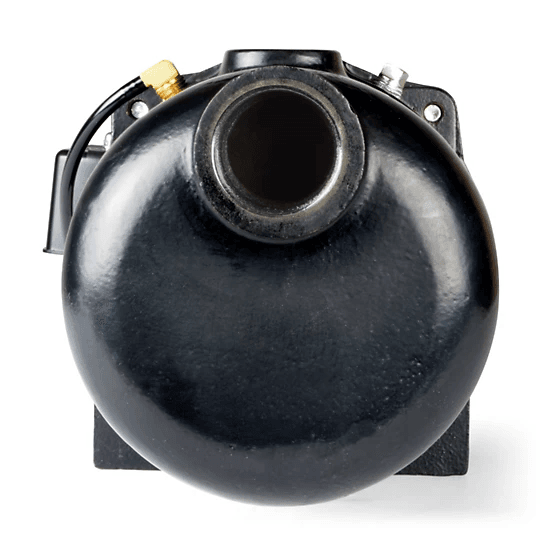

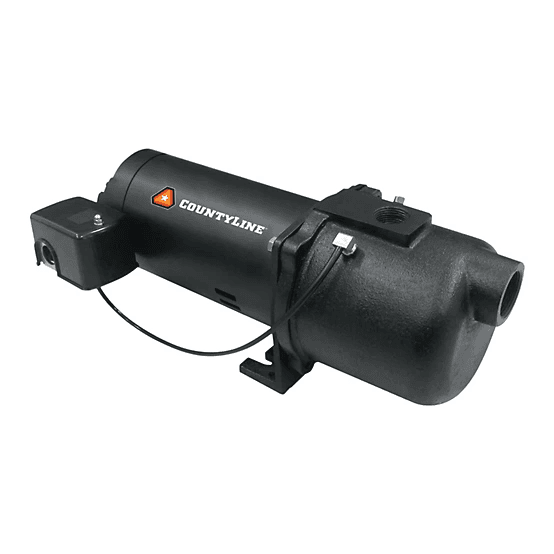

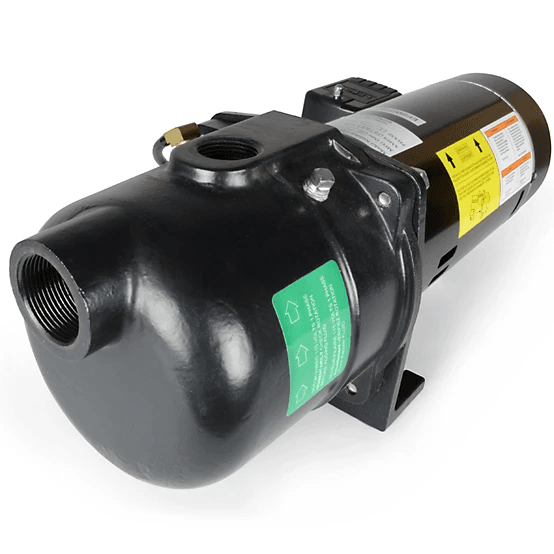

The CountyLine 3/4 HP 115/230V Cast-Iron Shallow Well Jet Pump delivers superior performance at depths to water of 25 ft. or less. Featuring rugged cast-iron construction and a heavy-duty, dual-voltage motor, this jet pump is designed for long-lasting, reliable use. It’s backed by a 2 year warranty.To install the jet pump, plumbing skills are required.
- Pumps 11.5 GPM at 0 degrees lift; 9.1 GPM at 10 ft. lift
- Powered by a heavy-duty, 3/4 HP dual-voltage motor
- Shallow well jet pump delivers superior performance at depths to water of 25 ft. or less
- Rugged cast-iron construction ensures lasting use
- Moderate level installation (plumbing skills required)
- For operation, a check valve, hacksaw, screwdriver, fuse box or circuit breaker, adjustable wrench, well seal, pipe wrench, tank tee and PVC cement may be needed (sold separately)
- Backed by a 2-year warranty
| Brand | CountyLine |
| Country of Origin | Imported |
| Amperage | 11.1,5.1 Amps |
| Body Material | Cast iron |
| Compatible Pipe Material | Poly, PVC |
| Compatible Well Diameter | 3 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1.14 in. |
| Discharge Rate at 0 ft. | 10.3 GPM |
| Discharge Rate at 25 ft. | 5.5 GPM |
| Discharge Rate at 50 ft. | 0 GPM |
| Features | Capacity to 11.5 GPM; Cast iron pump head; Built-in shallow well jet has corroson-resistant nozzle and venturi; Stainless steel shaft, heavy-duty bearings, balanced rotor, mechanical shaft seal and insulated windings; 30/50 Presssure switch |
| Head Pressure | 64 PSI |
| Horsepower | 34 HP |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.14 in. |
| Maximum Flow Rate | 8.1 GPM |
| Maximum Head Lift | 25 ft. |
| Maximum Operating Depth | 25 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Type | Electric |
| Product Height | 7.87 in. |
| Product Length | 24 in. |
| Product Weight | 28.2 lb. |
| Product Width | 11.4 in. |
| Motor Type | PSC |
| Voltage | 115V230V |
| Warranty | 2 Year |
| Manufacturer Part Number | CL7SWJ |
