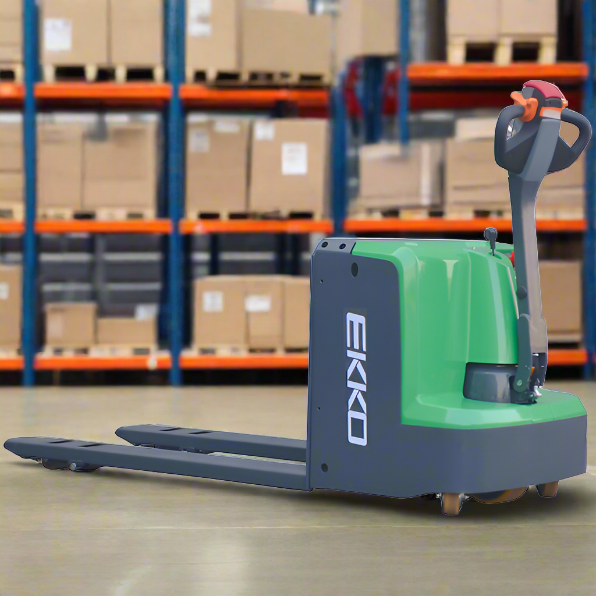

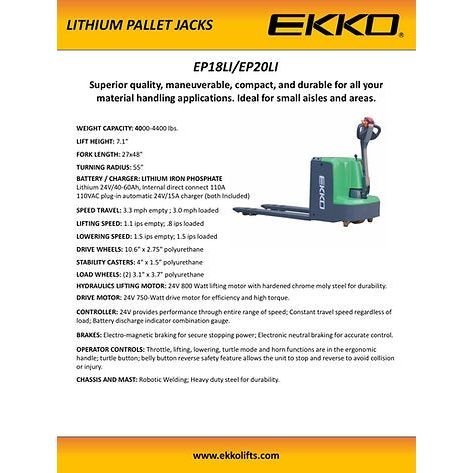

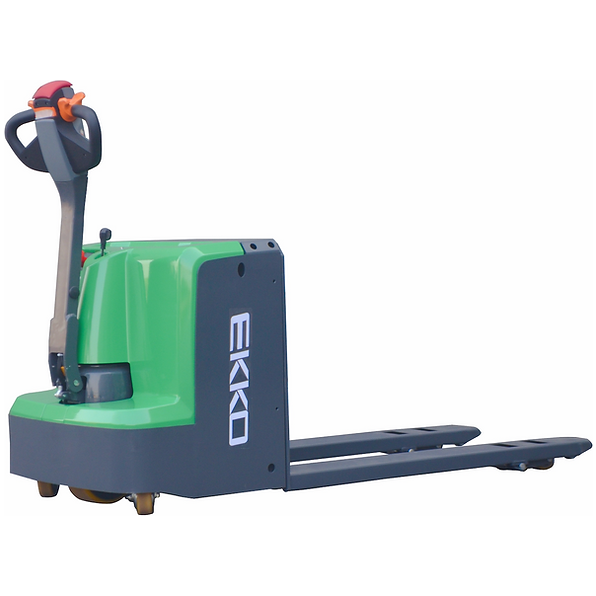

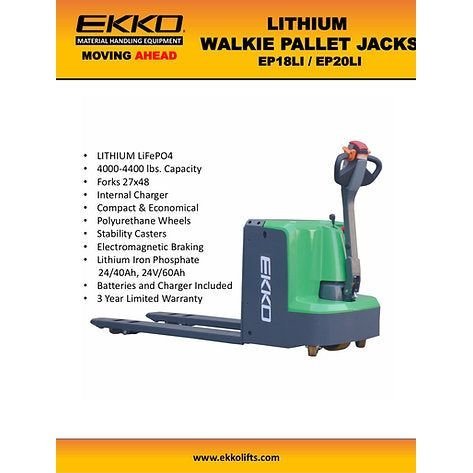

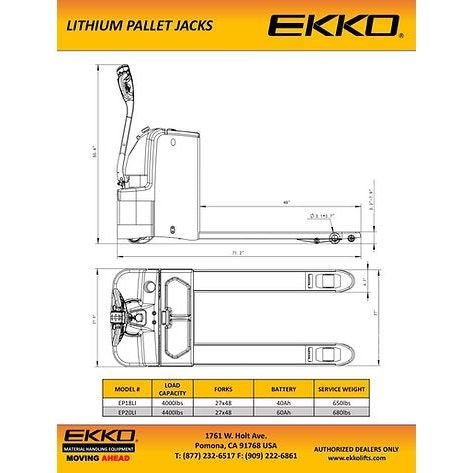

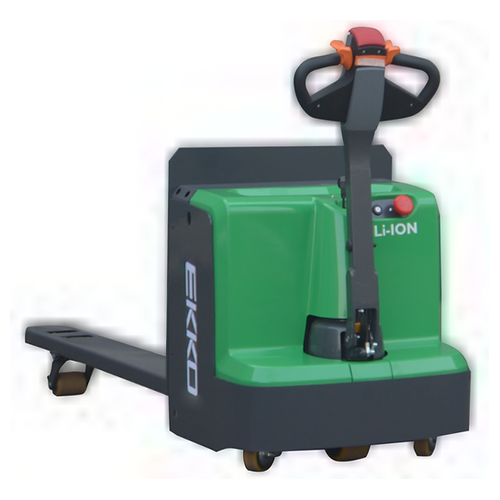

Electric Pallet Jack | Lithium Iron |4000 lbs Capacity | EKKO EP18LI

Description IMER IM 4746 Electric Aerial Scissor Lift With 52 Ft. Working Height and 550 lb Load Capacity 1128566 Product Description ​​ ​ ​Engineered to be compact and light-weight for easy clearance and maximum versatility. The reduced size, generous capacity, and optimized weight distribution ensure maneuverability in tight spaces with small steering angles. Operators may drive in any position, including at full height, providing superior productivity. Specifications Platform Height: 45’ 7” Working Height: 52’ 2” Pot-Hole Raised/Lowered: 4.7” / 1” Height Stowed: 9’ Height (Ground to Platform Bottom): 5’ 3 ½” Height Storage (With Guardrails): 7’ 4” Width (Outside Tires): 4’ Platform Length – Extended: 11’ 8” Platform Length: 7’ 5” Extension Platform Length: 4’ 3” Capacity / Number of People: 550 lb. / 2 Electric Drive Motors: 24 V / 4.0 HP Lifting Power Pack – Hydraulic Type: 24 V / 5.3 HP Lifting / Lowering Time (Sec) (Loaded): 68 / 67 Battery (Traction Battery) C5: 24 V / 300 Ah Battery Charger:  24 V / 30A Hydraulic Tank Capacity: 4.9 Gal Drive Speed: 2.5 mp/h Safety Traction: 0.4 mp/h Gradeability: 25 % Internal Steering Radius: 0 ft External Steering Radius: 7’ 8 ½” Tire Size (Wheel Dimension): 16” x 5” Wheel Type: Cushion Max Side/Longitudinal Tilt Angle: 1.2° / 2.0° Total Weight: 6610 lb. Features Standard Equipment Manual deck extension (holds two people) Electric traction on the front wheels Negative electromagnetic parking brakes with electric disengagement 90° wheel steering Manual deck extension of 39½” Manual emergency lowering Non-return valve on lifting cylinders Traction batteries 24V-185Ah (c5) Battery charger with automatic cut-off All movement alarm, horn, hour meter Tilt meter with motion cut-out and alarm Mechanical release for emergency hauling Solid rubber non-marking tires Electric scissor protection Pot Hole protection Battery level control with low voltage protection Foldable guardrails Platform weight management ANSI 92.20 / CSA / CE & EN280 approved AC power to platform Flashing beacon Proportional controls with diagnostics Optional Equipment 120 V cable with plug, socket and safety cut-out Gel battery IM 35 series Additional flashing beacon kit Compressed air line Product Document Product Sheet
