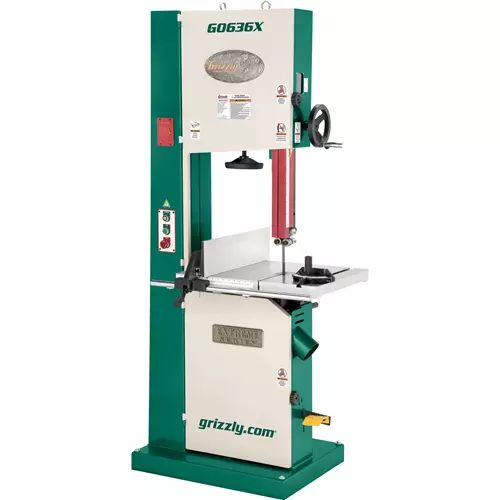

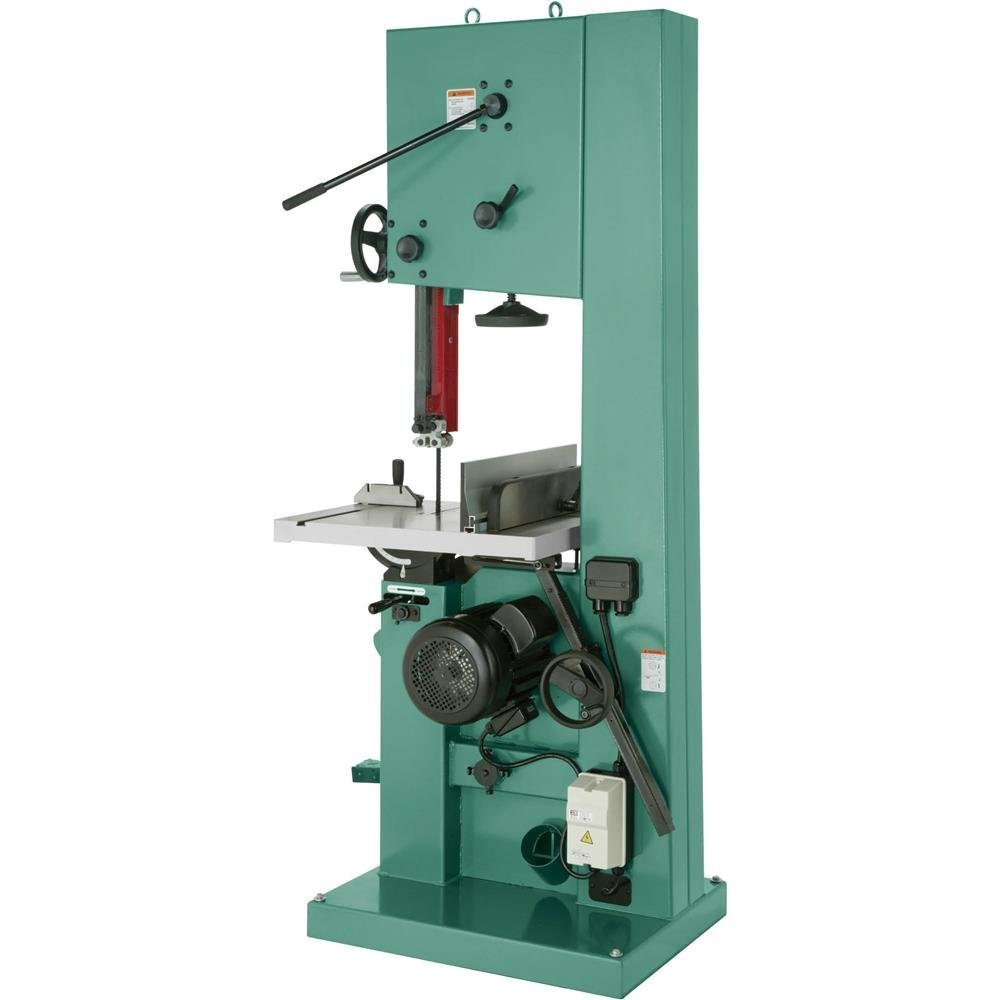

G0636X 17″ 5 HP Ultimate Bandsaw
Designed to compete directly against expensive high-end European bandsaws.
After several years of research and development, we put together this amazing package that is a perfect blend of precision and muscle.
The G0636X 17″ 5 HP Ultimate Bandsaw has all the features (and more) of comparable saws, but weighs nearly twice as much, meaning much more rigidity and vibration-absorbing mass than other 17″ bandsaws.
The 5 HP motor powers through wood at a maximum 16″ cutting capacity and the 16-1/2″ throat is big enough for most applications.
The G0636X has an extra-wide 21″ x 25-1/2″ cast-iron table that can tilt from 5° left to 45° right. The cast-iron fence includes an extruded-aluminum resaw fence that attaches quickly and supports tall stock exceptionally well.
For a full range replacement and resaw blades for the G0636X, shop here.
The G0636X manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your bandsaw.
SPECIFICATIONS:
Motor: 5 HP, 230V, single-phase, 22A
Throat (max. width left of blade): 16-1/2″
Resaw capacity: 16″
Resaw fence size: 6″ H x 23″ L
Table size: 21″ x 25-1/2″
Table tilt: 5° left, 45° right
Floor-to-table height: 35-1/2″
Blade size: 160″ – 162″ (1/8″–1-3/8″ wide)
Blade speed: 4500 FPM
Footprint: 29-1/2″ x 23-1/2″
Overall dimensions: 35-1/4″ W x 33-3/4″ D x 78-1/2″ H
Approximate shipping weight: 784 lbs.

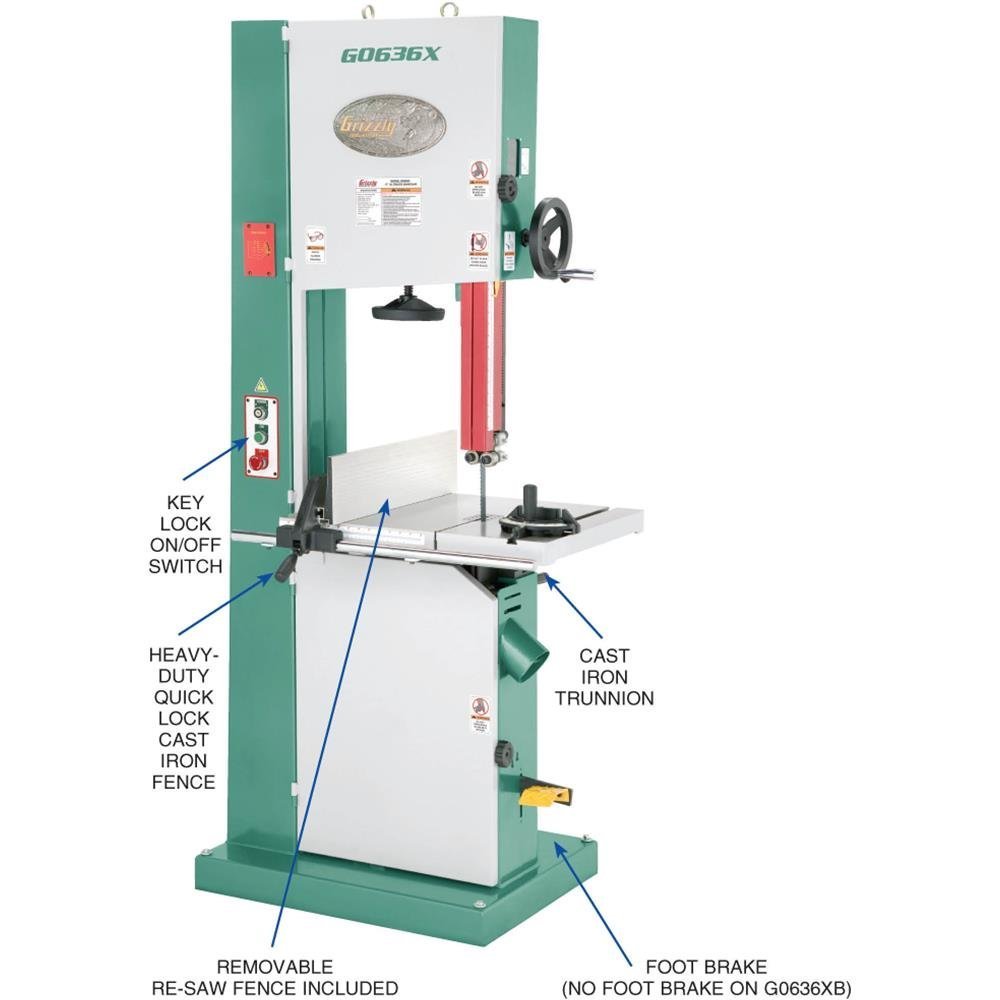

FEATURES:
Foot brake stop
Two 4″ dust ports
Precision-ground cast-iron table

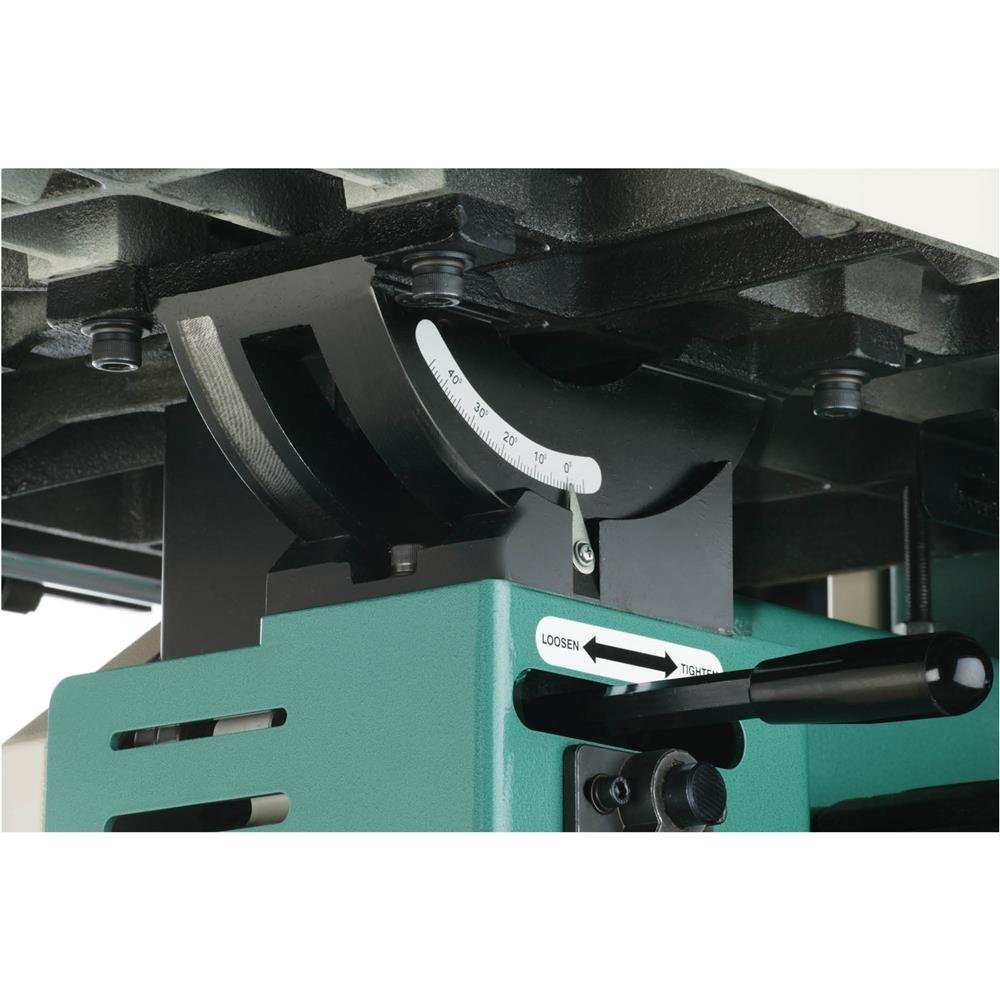

Micro-adjusting rack-and-pinion table tilt
Rack-and-pinion upper guide adjustment
Blade tension indicator
Blade tracking window
Height scale measurement
Deluxe cast-iron fence with extruded aluminum resaw fence
Fence adjusts for blade lead
Fence includes scale and magnifying window
Quick-release blade tensioning
Powder-coated finish

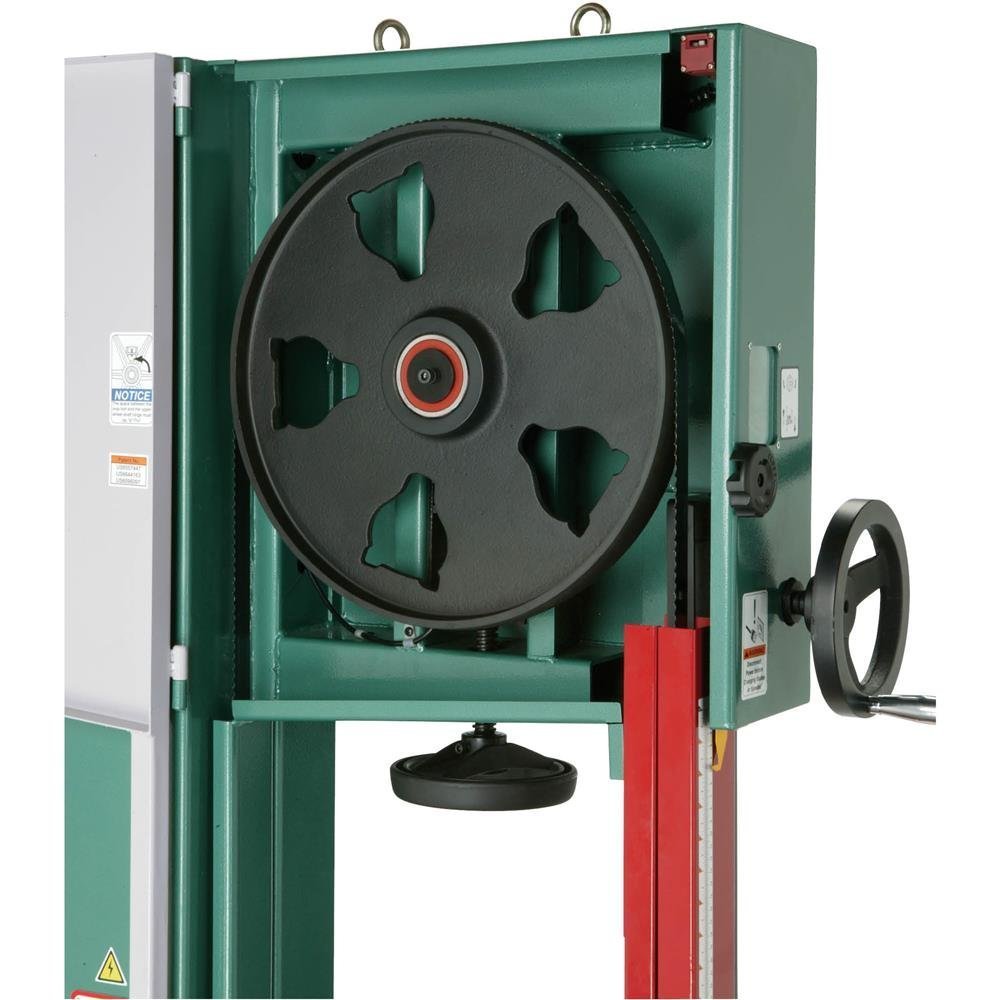

Fully balanced cast-iron wheels with urethane tires

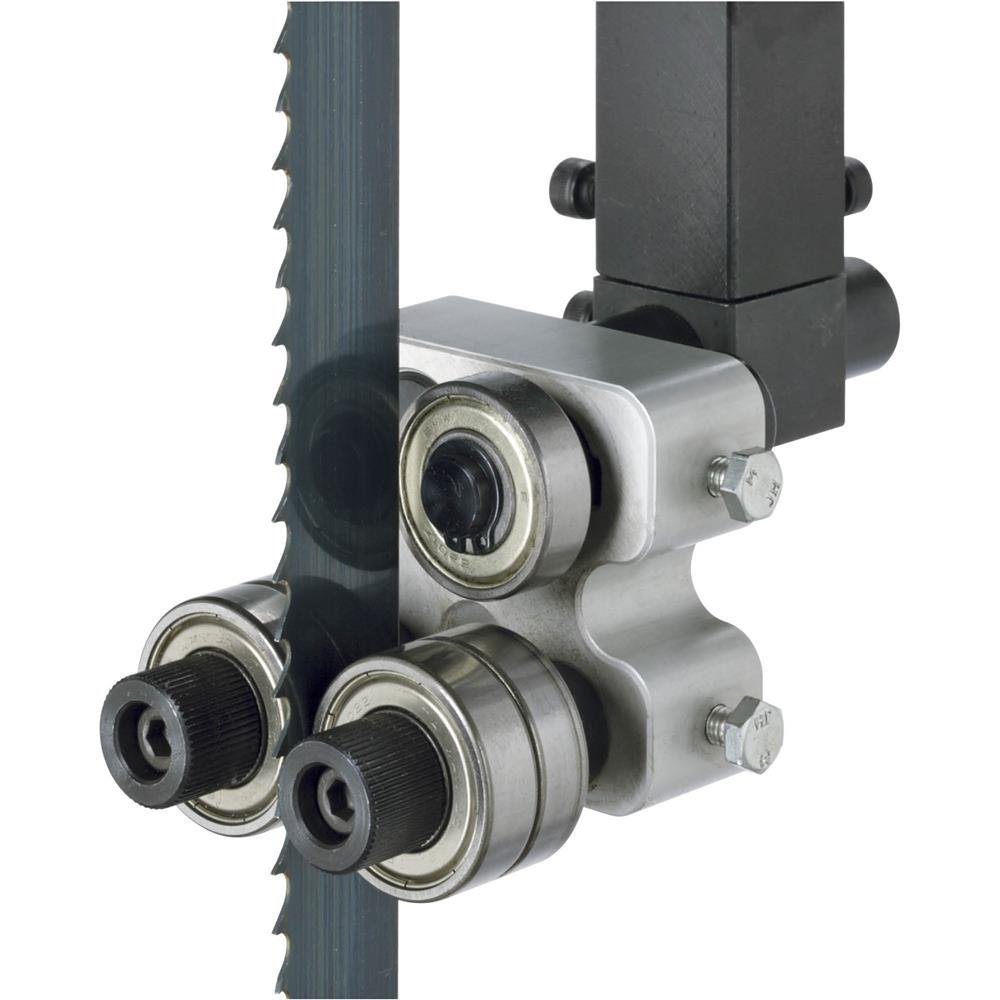

Blade guides: dual ball bearing
Sealed and permanently lubricated bearing
1″ 6-TPI hook blade and miter gauge
1-year limited warranty
Note: The G0636X does not come with a plug. The recommended plug type is L6-30.
