Description
Precision-ground cast iron table and extension wings
Cast iron trunnions
Easy-glide fence system

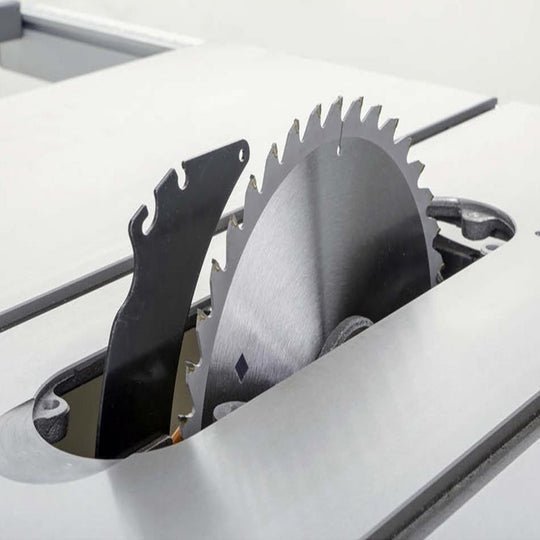

Quick-release blade guard and riving knife

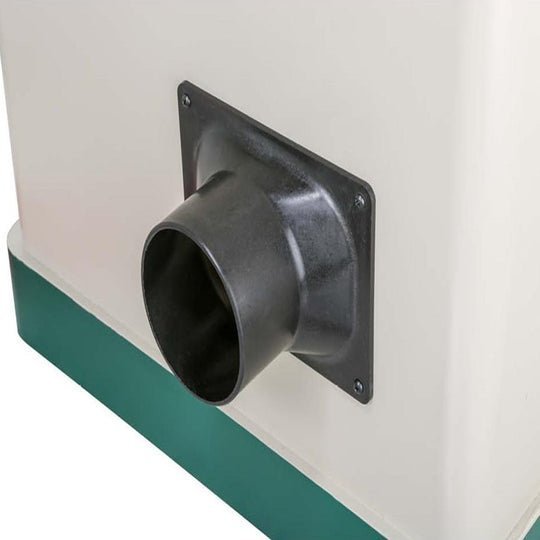

4in Dust port
T-slot miter gauge
Includes 10 in x 40T carbide-tipped blade
What’s in The Box

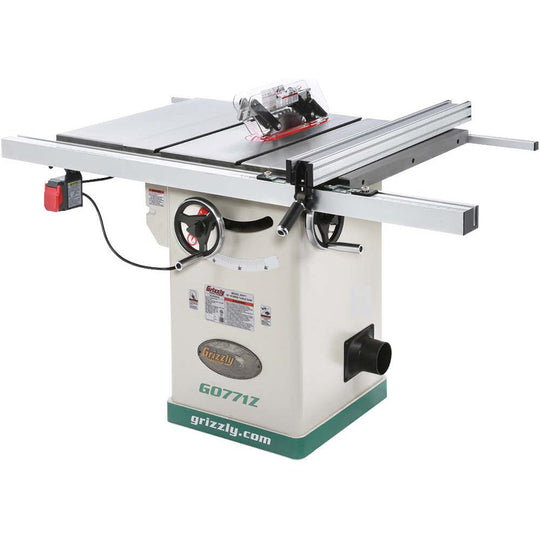

10 in 2 HP 120V Hybrid Table Saw with T-shaped Fence – G0771Z
Owner’s Manual
Warranty
1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed
Specifications
SKU
G0771Z
Brand
Grizzly
Motor
2 HP, Single Phased
Volts
120V/240V
Amps
15A at 120V, 7.5A at 240V
Table height
35-3/8 in
Footprint(inches)
21 L x 19-1/2 D
Arbor
5/8 in
Arbor Speed
3450 RPM
Max Depth of Cut at 90 Degrees
3-1/4 in
Max Depth of Cut at 45 Degrees
2-1/4 in
Item Dimensions(inches)
64 W x 35-1/2 D x 40-1/4 H
Weight
371 lbs
