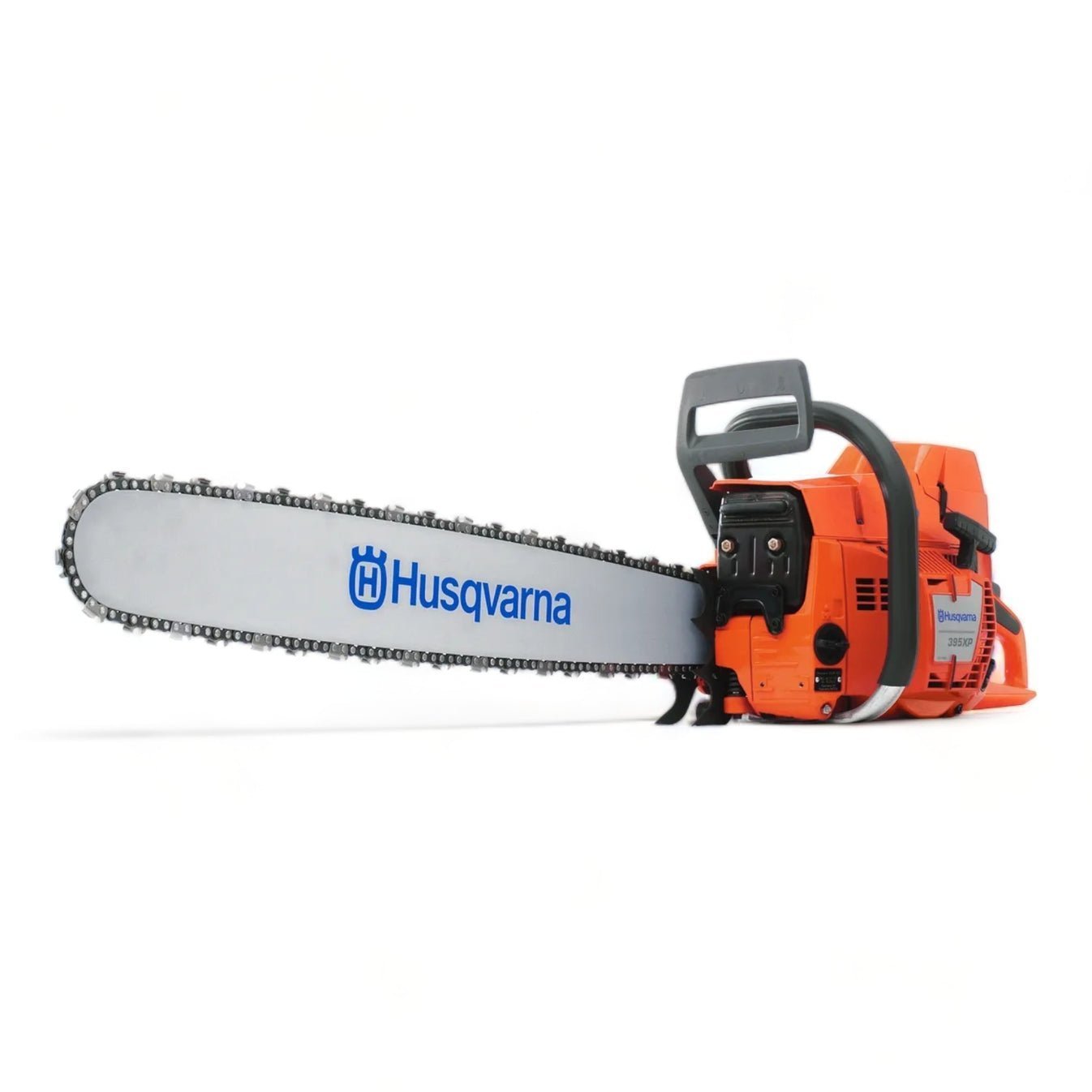

Husqvarna 395XP Gas Chainsaw

Description

An advanced large-size XP®-saw, developed for the toughest forestry jobs. A perfect saw for hard wood logging with longer bars.This saw has classic Husqvarna XP® -features such as high power to weight ratio, along with a rugged, high-speed engine with an improved cylinder and anti-vibration carburettor. The XP® G model has heated handles.
Features

Air Injection™ Technology – Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life.
Adjustable Oil Pump – Customize and control oil flow to meet any need.
Quick-Release Air Filter – Easily remove and replace the filter after cleaning.
Magnesium crankcase – Sturdily built crankcase withstands high rpms and tough professional use, ensuring a long service life.
Quick release air filter cover – Quick release cover saves time when cleaning or changing spark plug.
Three-Piece Crankshaft – Forged three-piece crankshaft delivers maximum durability for even the toughest of jobs.
LowVib® Technology – Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably.
Smart Start® Technology – Specially-designed engine and starter for easy and fast starting with minimum effort.
Ergonomic grip – Angled front handle for better grip and natural working position.
Felling marks – Distinct, coloured felling marks for better felling precision.
Inertia-Activated Chain Brake – Reduces the likelihood of injury due to kickback.

Specifications

Engine
20″ RSN 3/8″ 1,5 mm C85
SKU: 965 90 27‑20
28″ RSN 3/8″ 1,5 mm C85
SKU: 965 90 27‑65

Power output
4.9 kW
4.9 kW

Cylinder displacement
94 cm³
94 cm³

Maximum power speed
9,600 rpm
8,700 rpm

Maximum recommended engine speed
12,500 rpm
12,500 rpm

Idling speed
2,500 rpm
2,500 rpm

Torque, max.
5.9 Nm
5.9 Nm

Torque, max. at rpm
6,000 rpm
6,000 rpm

Clutch engagement speed (±120)
3,400 rpm
3,500 rpm

Fuel consumption
470 g/kWh
470 g/kWh

Fuel consumption
2.4 kg/h
2.3 kg/h

Spark plug
Champion RCJ6Y
NGK BPMR7A, Champion RCJ6Y

Electrode gap
0.5 mm
0.5 mm

Ignition module air gap
0.3 mm
0.3 mm

Oil pump type
Automatic
Automatic

Oil pump capacity, max
20 ml/min
20 ml/min

Oil pump capacity, min
15 ml/min
15 ml/min

Equipment

Bar length (inch)
20 in
28 in

Recommended bar length, min
45 cm
45 cm

Recommended bar length, max
70 cm
70 cm

Chain type
H42
C85

Gauge
1.5 mm
1.5 mm

Pitch
3/8″
3/8″

Sprocket type
Rim 7
Rim 7

Dimensions

Weight (excl. cutting equipment)
7.9 kg
7.9 kg

Lubricant

Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1
Husqvarna 2 stroke or equiv. at 50:1

Oil tank volume
1.06 US pint
1.1 US pint

Oil tank volume
0.5 l
0.5 l

Sound and Noise

Sound power level, guaranteed (LWA)
115 dB(A)
115 dB(A)

Sound power level, measured
114 dB(A)
114 dB(A)

Sound pressure level at operators ear
102 dB(A)
102 dB(A)

Vibration

Equivalent vibration level (ahv, eq) front handle
6.5 m/s²
6.5 m/s²

Equivalent vibration level (ahv, eq) rear handle
10.2 m/s²
10.2 m/s²
