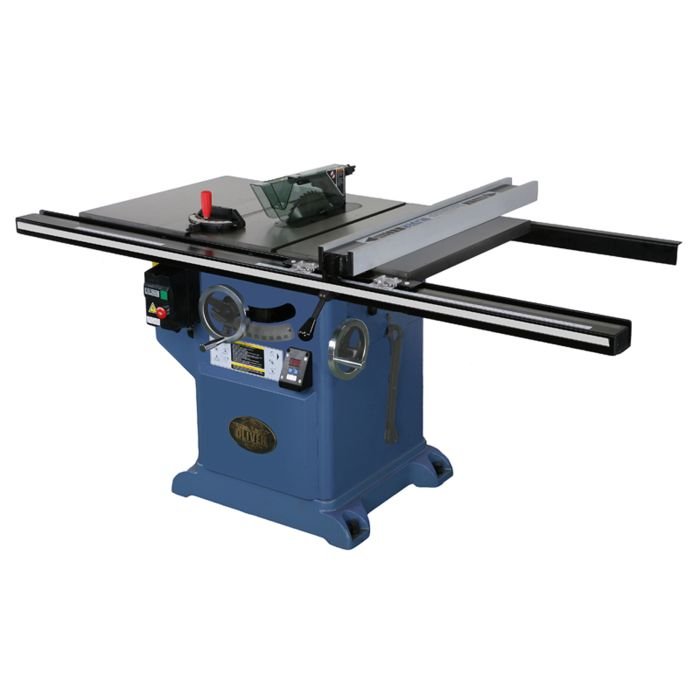

Oliver Machinery 10” 3 Phase 5 HP Professional Heavy-Duty Table Saw with 36” Rails
Product Description
Experience unparalleled cutting precision and power with the Oliver Machinery 10″ 3 Phase 5 HP Professional Heavy-Duty Table Saw. Engineered for professional woodworkers, this robust saw features a potent 5 HP motor and 36″ rails, ideal for demanding projects. With its durable construction and efficient three-phase operation, it’s the go-to choice for workshops aiming for top-notch performance and reliability. Elevate your woodworking game with Oliver Machinery’s trusted craftsmanship.
Features
- Large precision ground table provides a stable work surface.
- Cast iron base offers a steady platform.

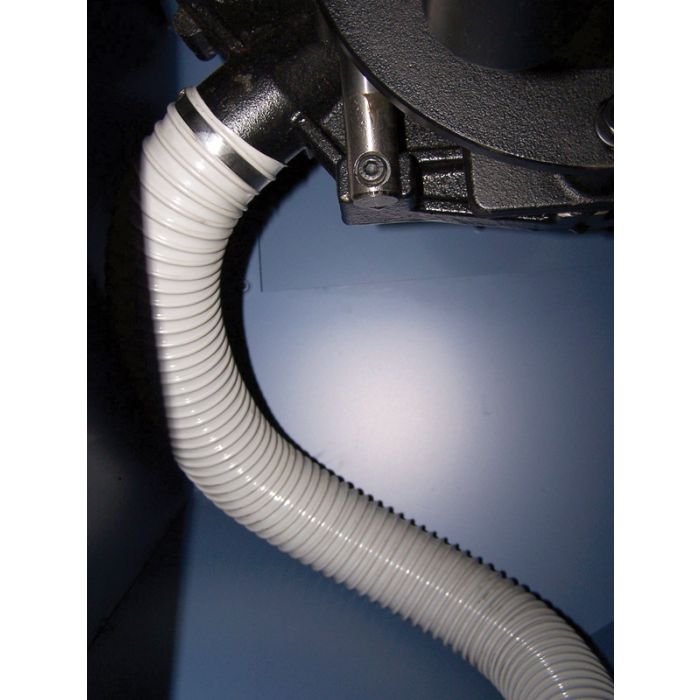

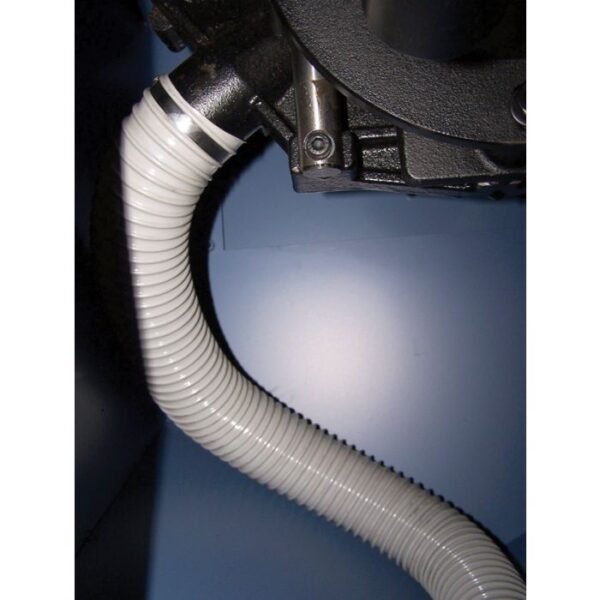

- Fully enclosed cabinet and blade dust shroud for better dust management.
- Precision ground 5/8” arbor.
- Wide stance trunnion features a left tilt blade.
- Poly V-belt drive smoothly transfers power to the blade.
- Hydraulic assisted blade lift mechanism for easy movement.
- Large chrome hand wheels allow easy adjustments.

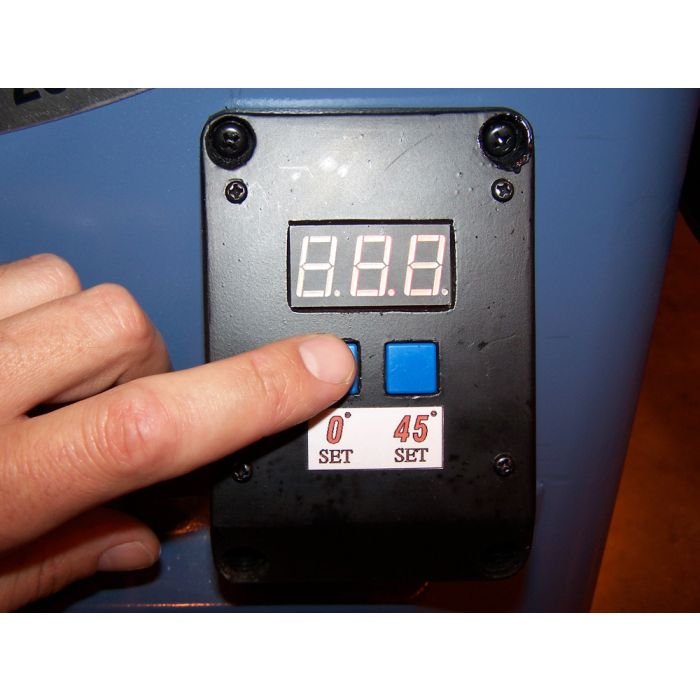

- Includes digital readout of blade tilt.

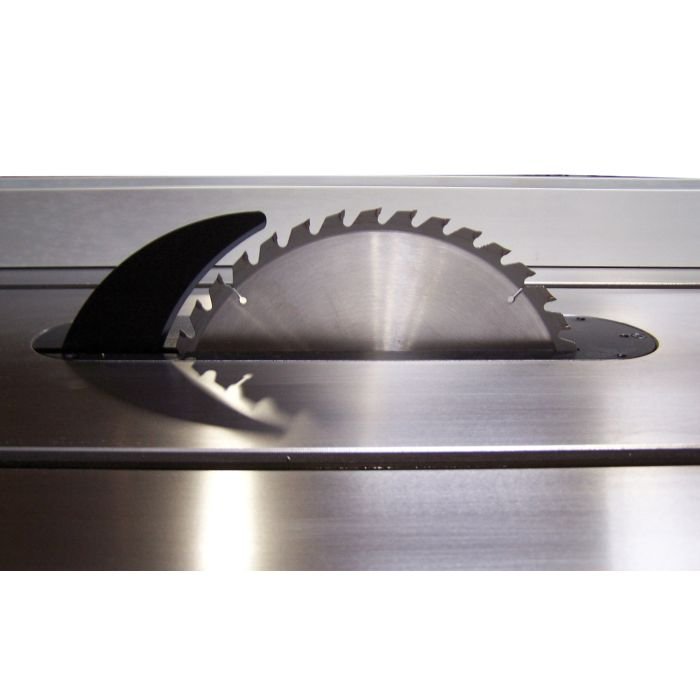

- Riving knife splitter for added safety against kick-back.
- Optimus T-square fence available in 36” rip capacity.
- 36” rail includes (2) cast iron extension wings.
- Optional rear support table available.
- Magnetic controls with emergency off switch.

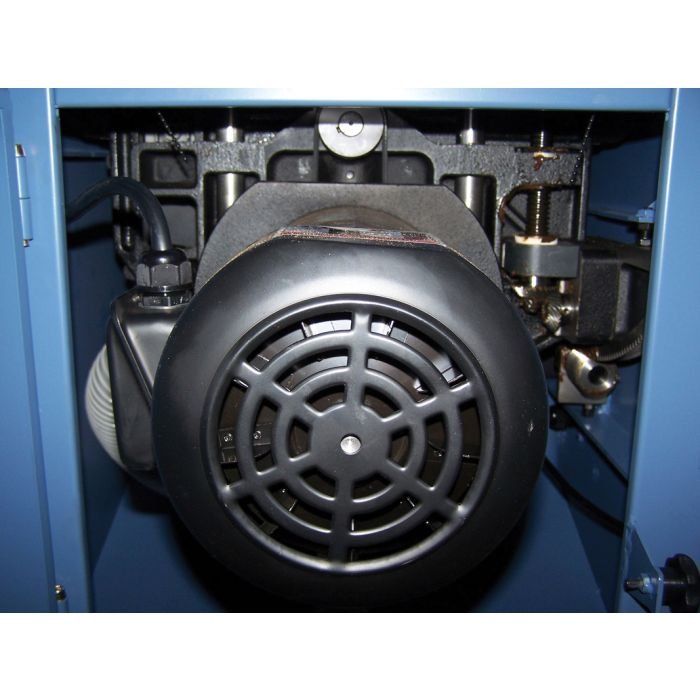

- Powerful TEFC motor available in three phase.

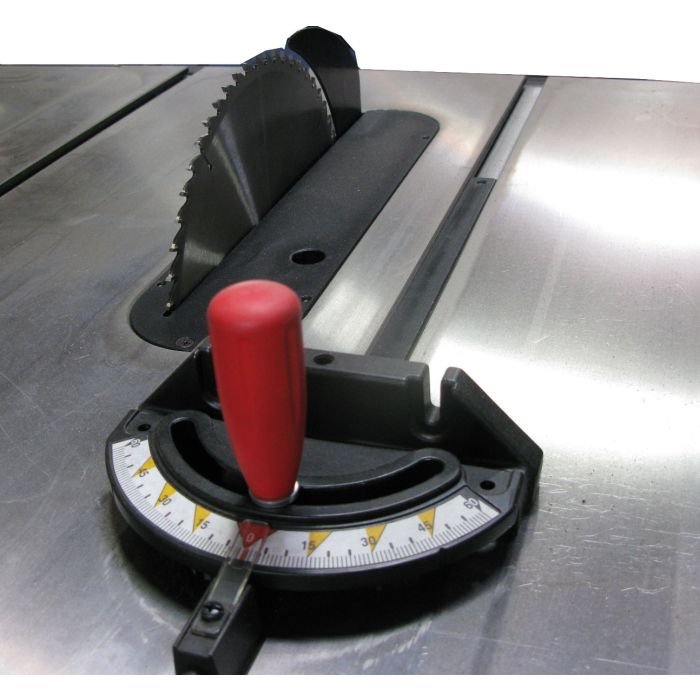

- Miter gauge included.
- Blade not included.
Specification
|
Model Number |
4016.004 |
|
Ph |
3Ph |
|
Rail Length |
w/36′ Rail |
|
Stock Number |
4016 |
|
Stock No. (5HP, 3Ph) |
4016.004 |
|
Blade Diameter |
10″ |
|
Arbor Diameter |
5/8″ |
|
Blade Tilt |
Left |
|
Arbor Speed |
3,450 RPM |
|
Maximum Depth of Cut at 90° |
3″ |
|
Maximum Depth of Cut at 45° |
2-1/4″ |
|
Maximum Width of Dado |
13/16″ |
|
Maximum Cut to Right of Blade |
36” |
|
Maximum Cut to Left of Blade |
12″ |
|
Dust Port Diameter |
4″ |
|
Table Dimensions w/o Extensions |
27”D x 21-1/4”W |
|
Wing Size |
27” x 12” |
|
Table Height |
36″ |
|
Motor 3Ph |
5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp)
|
|
Overall Dimensions |
74”L x 32-½”W x 40”H |
|
Net Weight |
480 lbs. |
|
Gross Weight |
720 lbs. |
