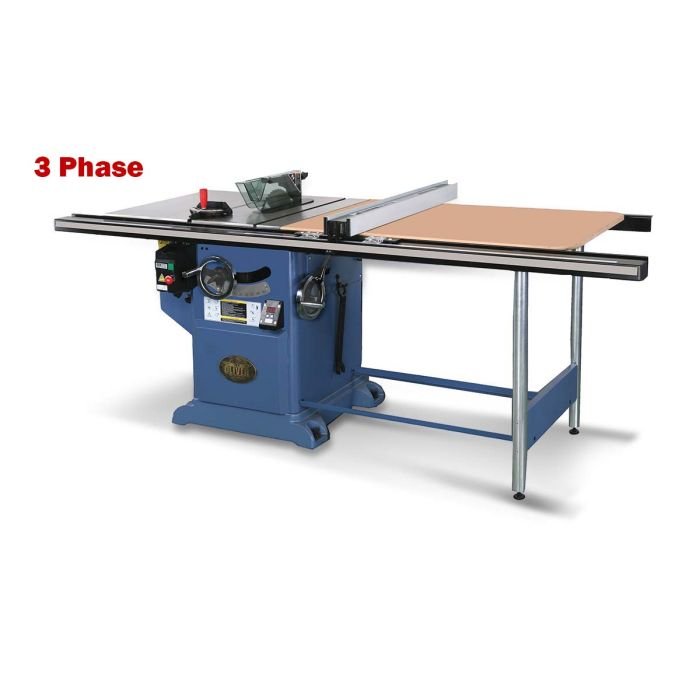

Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table
Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 2
Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 3
Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 4
Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 5
Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 6
Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 7

Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table

Price range: $1,266.00 through $1,457.00

SKU: 7834484867134-oliver-machinery-12-3-phase-7-5-hp-professional-heavy-duty-table-saw-with-52-rails-with-side-table

Description

Oliver Machinery 12” 3 Phase 7.5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table

Product Description

Dominate your woodworking projects with the Oliver Machinery 12″ 3 Phase 7.5 HP Professional Heavy-Duty Table Saw. Boasting a potent 7.5 HP motor and expansive 52″ rails, this saw delivers unmatched power and precision. Plus, the included side table provides additional workspace for increased efficiency. Elevate your workshop capabilities with Oliver Machinery’s top-tier craftsmanship and innovative features.

Features

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.

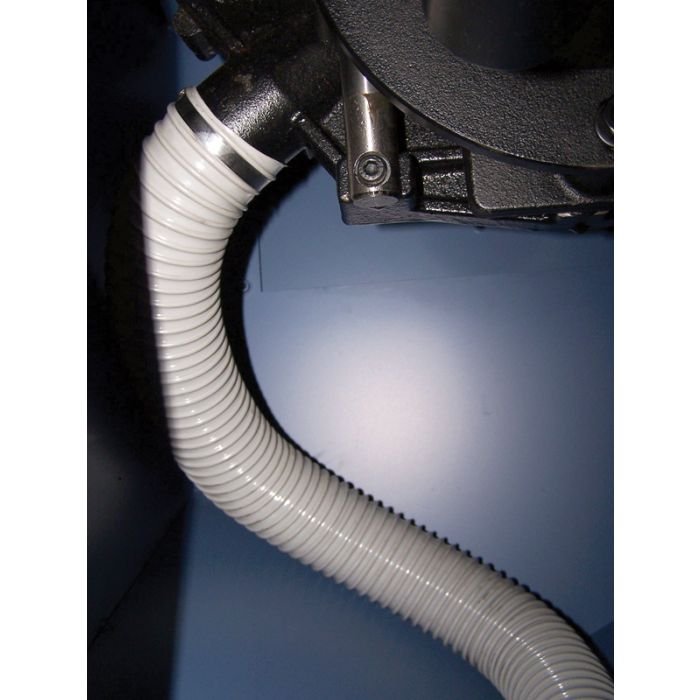

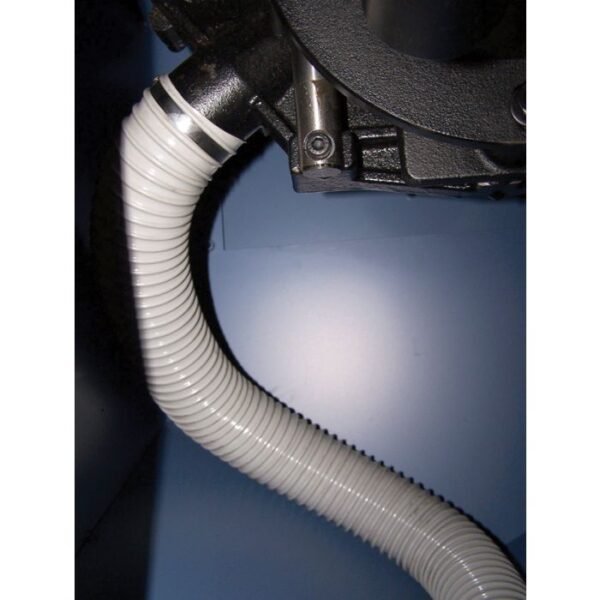

  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1” arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./

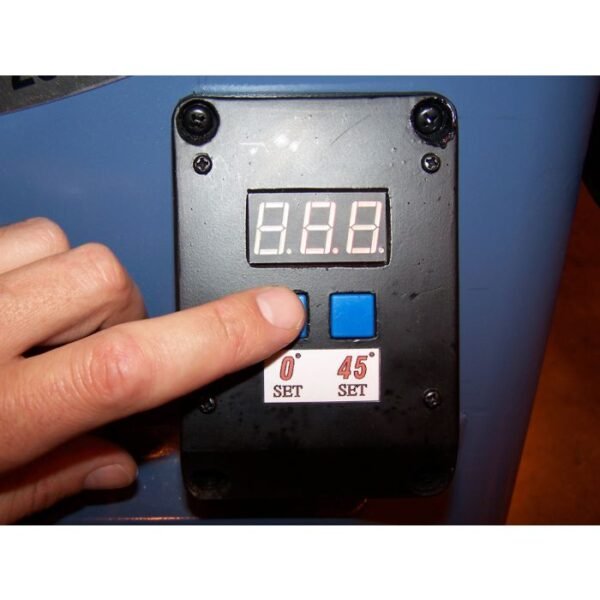

  • Includes digital readout of blade tilt.

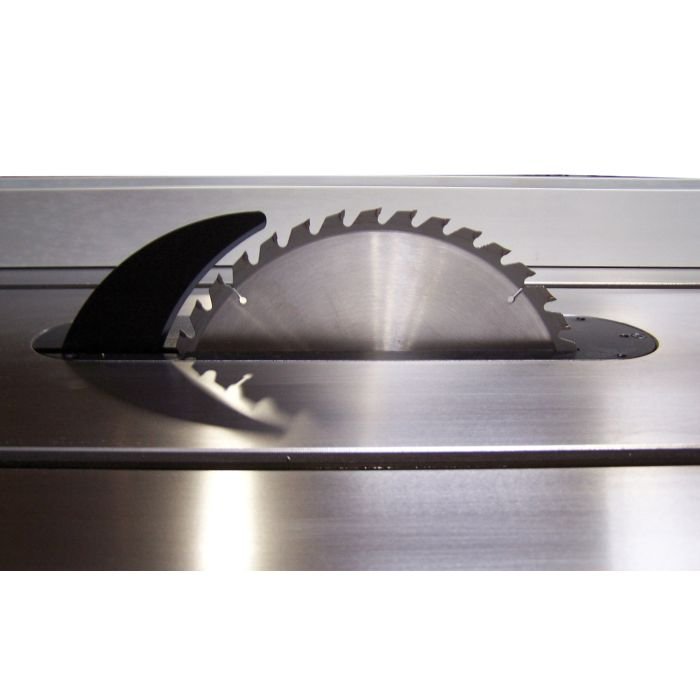

  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52” rip capacity.
  • 52” rail includes wood side table and (1) cast iron extension wing.

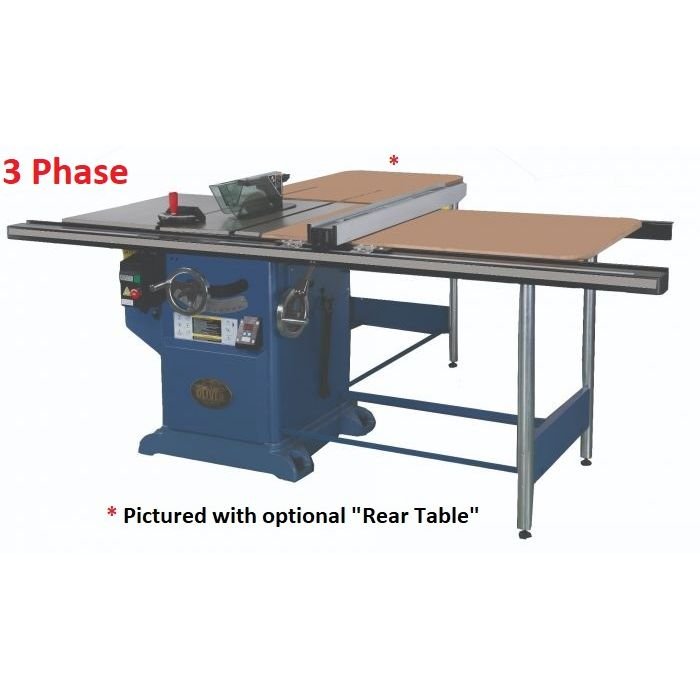

  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.

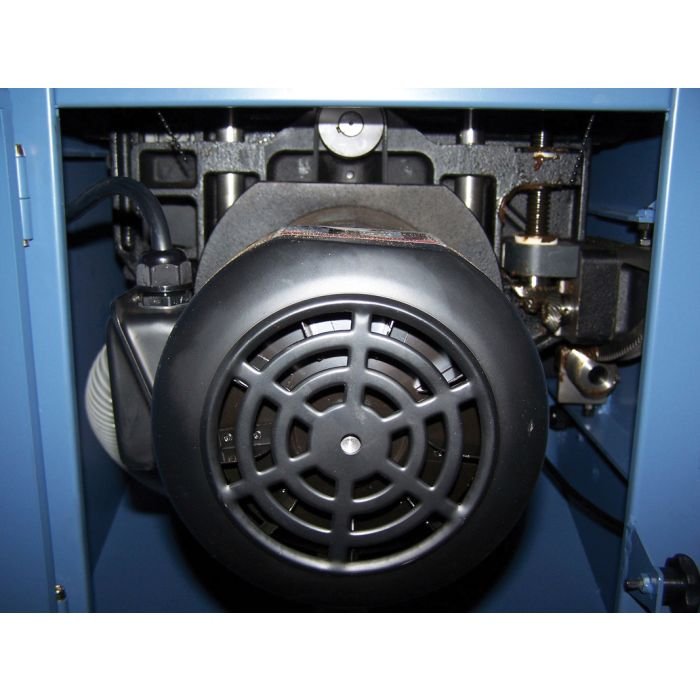

  • Powerful TEFC motor available in three phase.

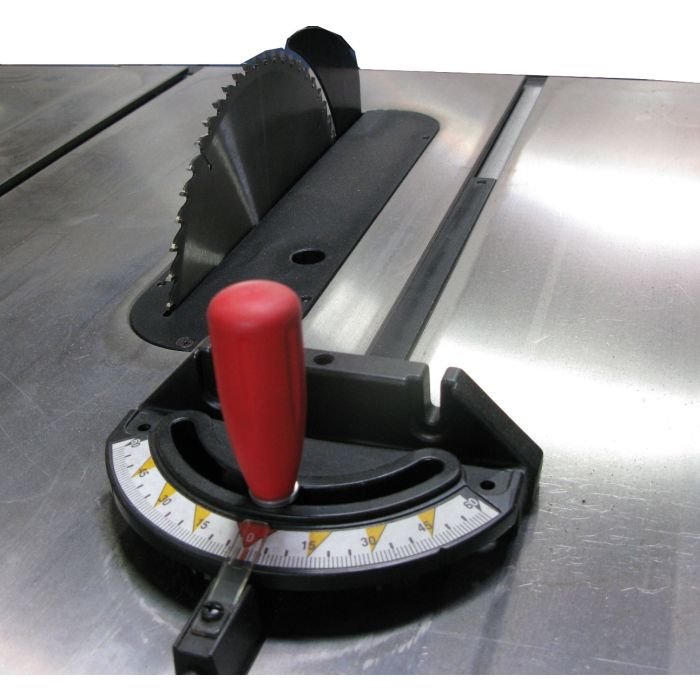

  • Miter gauge included.
  • Blade not included.

Specification

Model Number

 4045.004

Ph

 3Ph

Rail Length
w/Side Table w/52″ Rail

Stock Number

 0

Stock No. (5HP, 1Ph)

 4045.004.A001

Blade Diameter

 12″

Arbor Diameter

 1”

Blade Tilt

 Left

Arbor Speed

 3,450 RPM

Maximum Depth of Cut at 90°

 4″

Maximum Depth of Cut at 45°

 2-2/3″

Maximum Width of Dado

 13/16″

Maximum Cut to Right of Blade

 52” Rail

Maximum Cut to Left of Blade

 12″

Dust Port Diameter

 4″

Table Dimensions w/o Extensions

 30-3/4”D x 24”W

Wing Size

 30-3/4” x 12”

Table Height

 36″

Footprint
7.5HP, 3Ph, 220V/440V* Prewired 220V (20/10 Amp)

Overall Dimensions

 75”L x 45”W x 41”H

Net Weight

 550 lbs.

Gross Weight

 750 lbs.



Product Document

Product Manual
