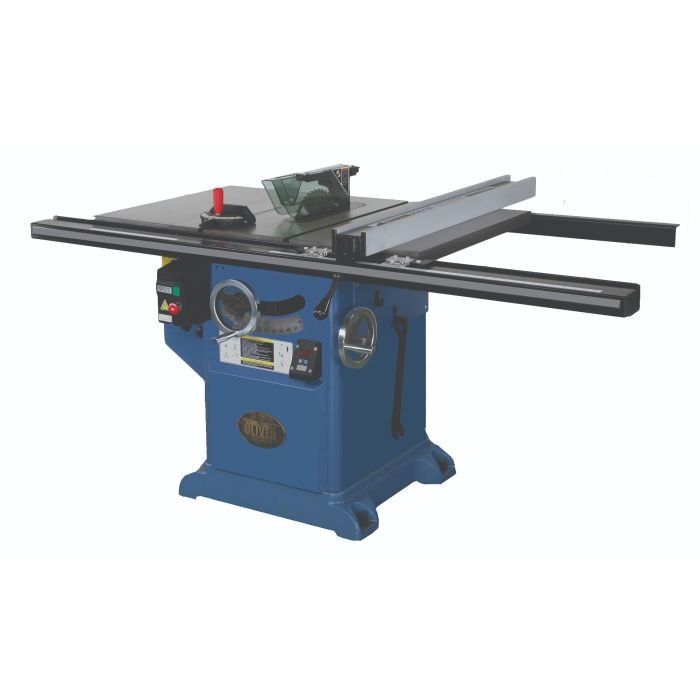

Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 2
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 3
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 4
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 5
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 6
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 7
Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table - Image 8

Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table

Price range: $1,287.00 through $1,423.00

SKU: 7834484932670-oliver-machinery-12-single-phase-5-hp-professional-heavy-duty-table-saw-with-52-rails-with-side-table

Description

Oliver Machinery 12” Single Phase 5 HP Professional Heavy-Duty Table Saw with 52” Rails with side table

Product Description

Experience unmatched cutting precision with the Oliver Machinery 12″ Single Phase 5 HP Professional Heavy-Duty Table Saw. Featuring a powerful 5 HP motor and expansive 52″ rails, this saw is ideal for demanding projects. Plus, with the added convenience of a side table, you’ll have extra workspace for enhanced versatility in your workshop. Elevate your woodworking game with Oliver Machinery’s superior craftsmanship and innovative design.

Features

  • Large precision ground table provides a stable work surface.
  • Cast iron base offers a steady platform.

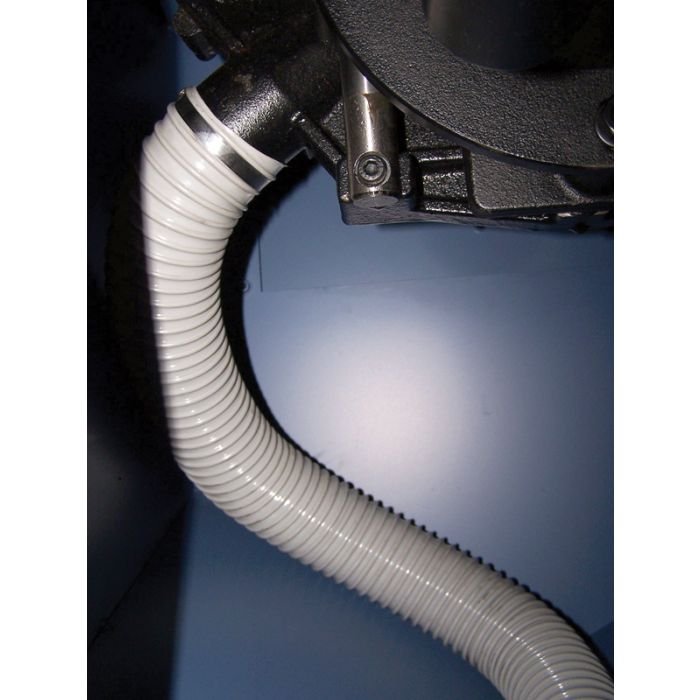

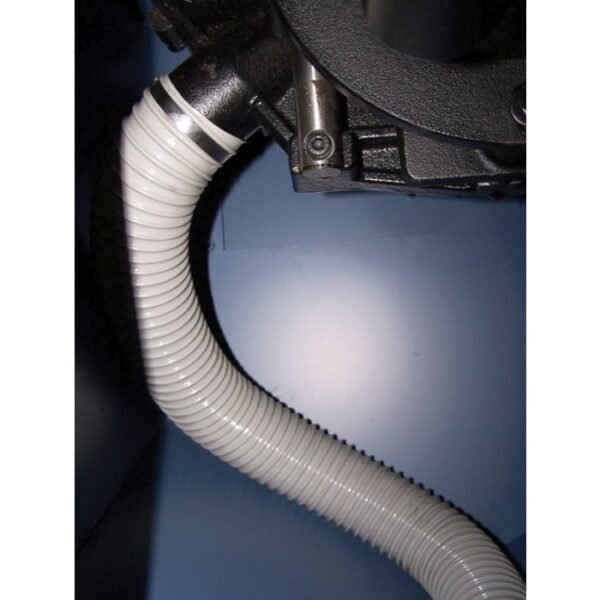

  • Fully enclosed cabinet and blade dust shroud for better dust management.
  • Precision ground 1” arbor.
  • Wide stance trunnion features a left tilt blade.
  • Poly V-belt drive smoothly transfers power to the blade.
  • Hydraulic assisted blade lift mechanism for easy movement.
  • Large chrome hand wheels allow easy movement./

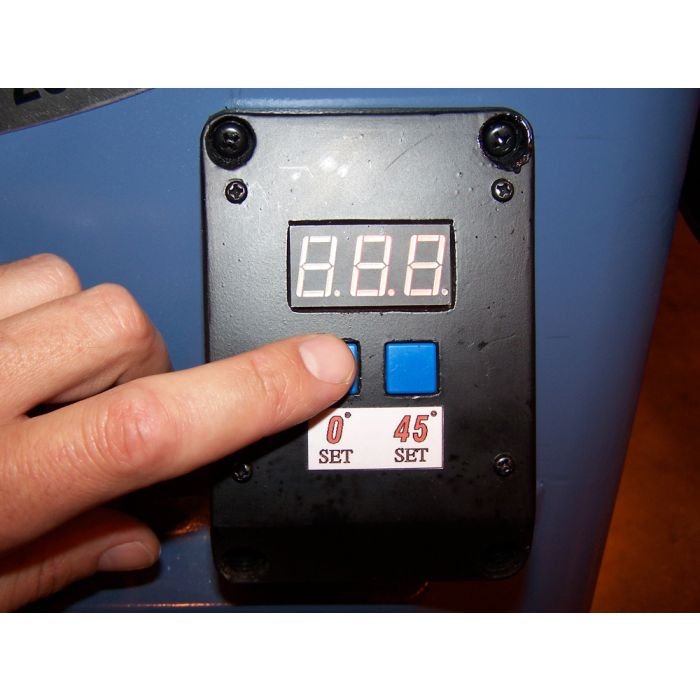

  • Includes digital readout of blade tilt.

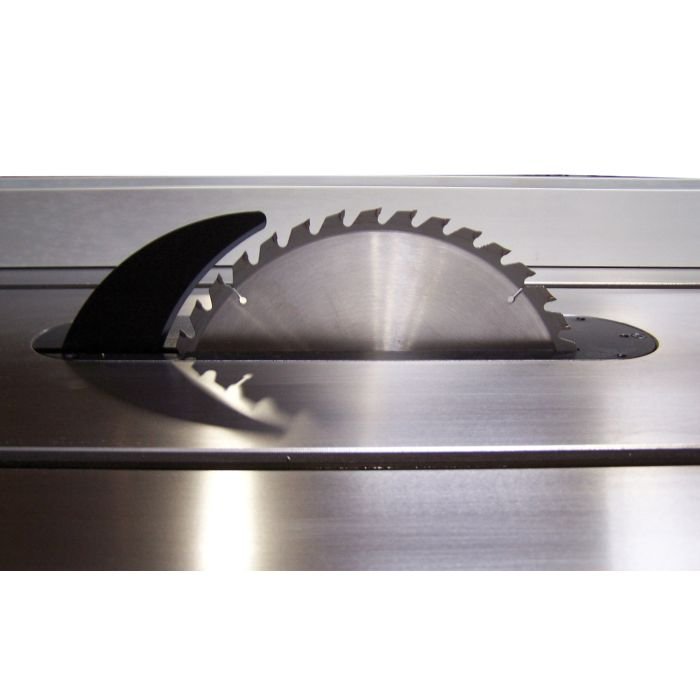

  • Riving knife splitter for added safety against kick-back.
  • Optimus T-square fence available in 52” rip capacity.

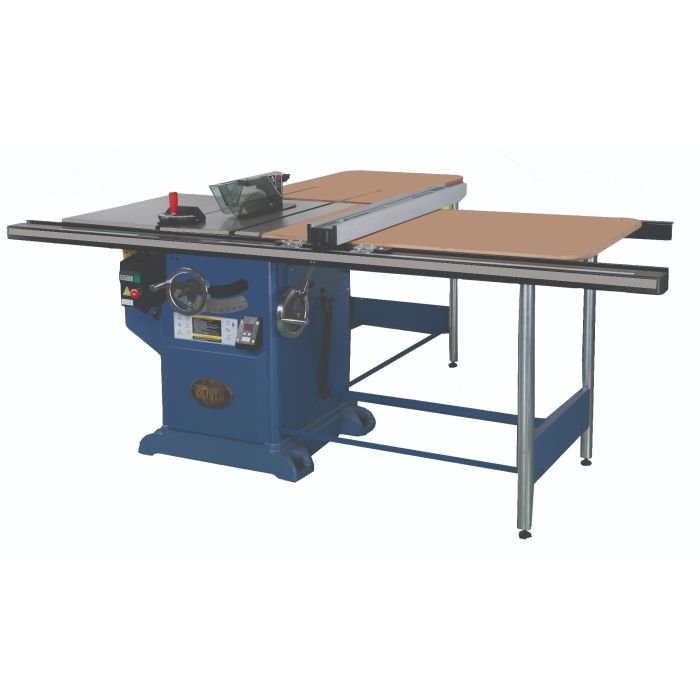

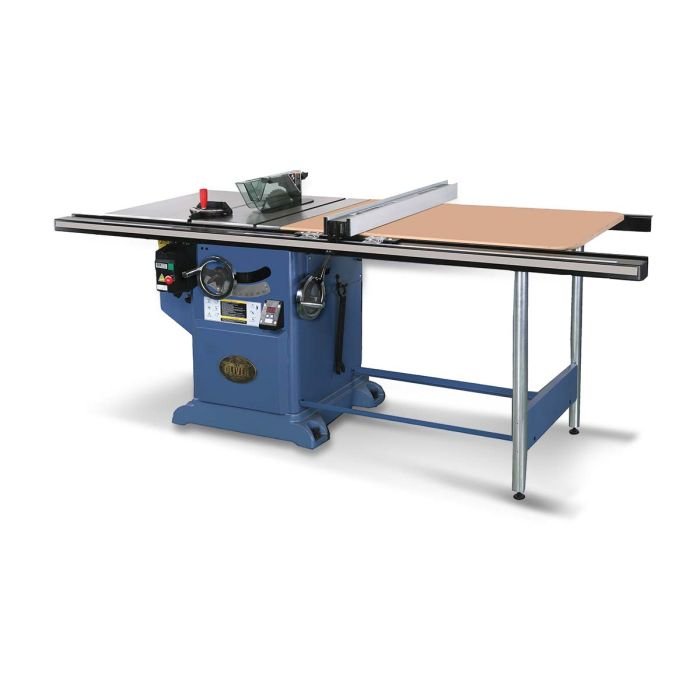

  • 52” rail includes wood side table and (1) cast iron extension wing.
  • Optional rear support table available (pictured)
  • Magnetic controls with emergency off switch.

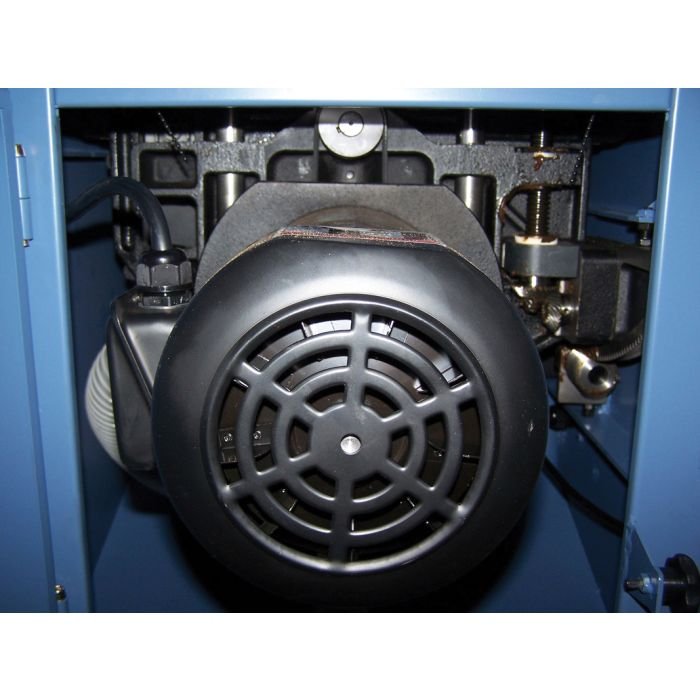

  • Powerful TEFC motor available in single phase.

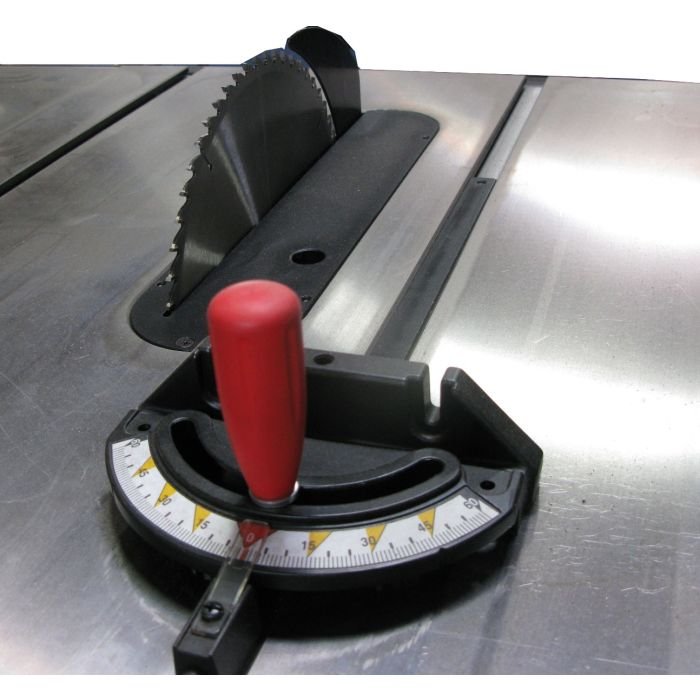

  • Miter gauge included.
  • Blade not included.

Specification

Model Number

 4045.003

Ph

 1Ph

Rail Length
w/Side Table w/52″ Rail

Stock Number

 0

Stock No. (5HP, 1Ph)

 4045.003.A001

Blade Diameter

 12″

Arbor Diameter

 1”

Blade Tilt

 Left

Arbor Speed

 3,450 RPM

Maximum Depth of Cut at 90°

 4″

Maximum Depth of Cut at 45°

 2-2/3″

Maximum Width of Dado

 13/16″

Maximum Cut to Right of Blade

 52” Rail

Maximum Cut to Left of Blade

 12″

Dust Port Diameter

 4″

Table Dimensions w/o Extensions

 30-3/4”D x 24”W

Wing Size

 30-3/4” x 12”

Table Height

 36″

Motor 1Ph
5HP, 1Ph, 220V Only (18 Amp)

Overall Dimension

 75”L x 45”W x 41”H

Net Weight

 550 lbs.

Gross Weight

 750 lbs.
