Rane ONE Professional Motorized DJ Controller

Description

Description

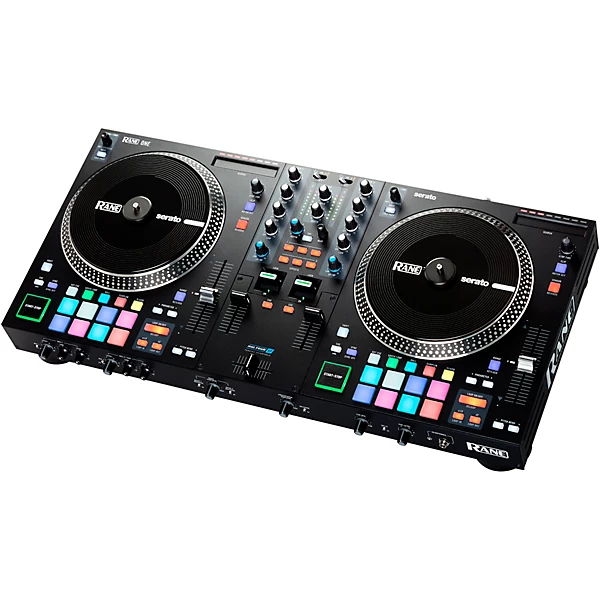

The RANE ONE professional motorized DJ controller provides an intuitive solution for taking your sets to the next level. RANE’s trusted reputation for build quality and audio engineering is on full display with high-torque, 7.2″ motorized platters and multi-function performance pads granting tactile mastery over your music. Connect nearly any source with comprehensive I/O options, then shape your signature sound using the onboard filters, EQs and Serato DJ Pro software integration. When creativity calls, the RANE ONE answers.
Motorized Platters Provide Responsive Feel
At the heart of the RANE ONE are two high-torque, 7.2″ motorized platters with customizable torque settings for dialing in the perfect feel. Their sturdy acrylic surfaces stand up to intensive scratching and mixing, conveying authentic vinyl-like control with the convenience of a digital setup. Start and stop each platter with a classic plunger-style button for an old-school touch.
Multi-Function Pads Unlock Advanced Techniques

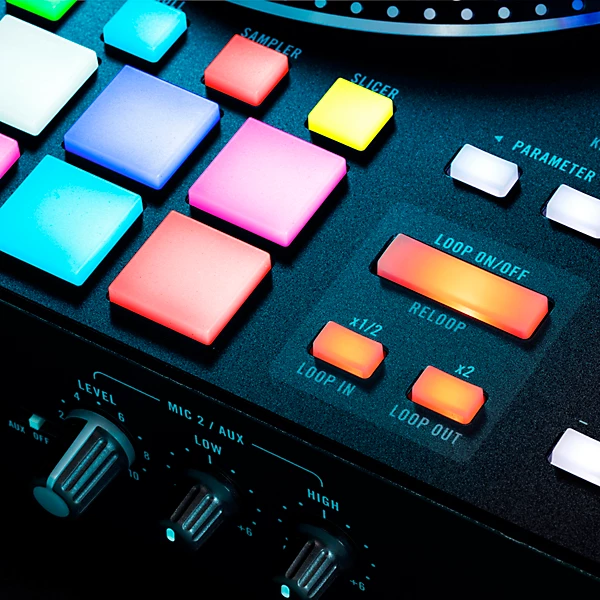

Sixteen multi-function performance pads provide one-touch access to advanced DJ techniques. Trigger saved loops, set hot cues, roll sections of tracks, activate samples, slice beats and access Scratch Bank. With six dedicated effects buttons, activate and tweak combinations of software effects on the fly for dramatic builds, drops and transitions using the aluminum paddle controls.
Connectivity for Any Gig

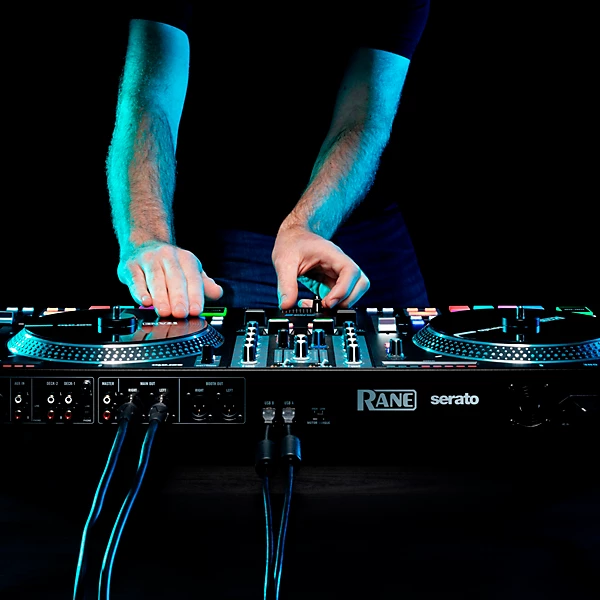

The RANE ONE offers comprehensive connectivity for any DJ setup. Each deck features two USB ports to connect laptops, switchable line and phono inputs for CDJs or turntables, and XLR and RCA main outputs. Dual XLR/TRS microphone inputs, an aux input and booth output provide additional flexibility. Control two music sources at once or seamlessly transition between them with the MAG FOUR crossfader for precision cuts.
Shape a Signature Sound
Put your mark on the music with 3-band EQs, dedicated loop controls and high/low-pass filters on each deck. The RANE ONE integrates Serato DJ Pro software for tight control over an extensive library of tracks. Save and recall precise EQ settings, loops and more using Serato’s advanced features.
Features

7.2″ motorized platters with quick release acrylic disks
Instant access software FX with two metal FX paddles

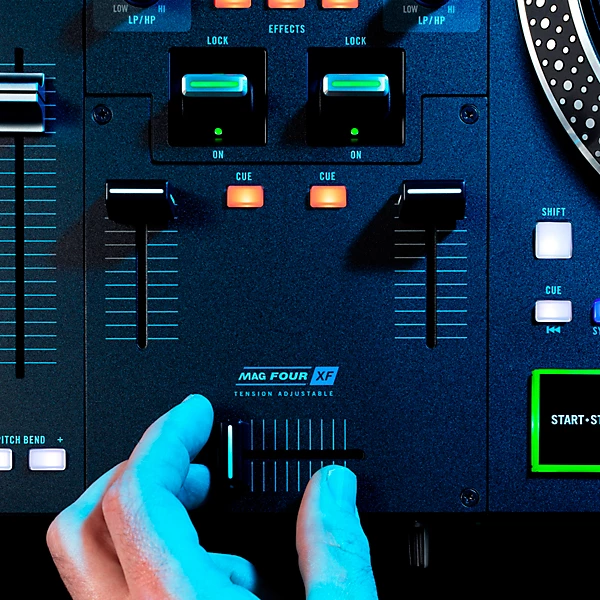

Ultralight MAG FOUR crossfader
High/Low-pass filter and 3-band EQ
Dedicated loop controls
Independent multi-mode performance pads including Serato
Scratch banks
Turntable style start/stop
XLR main and booth outputs
2 line/phono inputs
2 TRS/XLR microphone inputs
2 USB computer connections
Portable DJ controller
Weight: 24 lb.
Serato DJ Pro included

Specs

Digital Audio

Converters
Cirrus Logic, 24-bit PCM, 48kH
Digital Signal Processing
32-bit, Floating Pont, Double precision
Dynamic Range (A-weighted, unity gain)
ADC: 113dB
DAC: 113dB
CD Input to Analog Output: 110dB
CD Input to USB Output: 113dB
USB Input to Analog Output: 113dB

Inputs

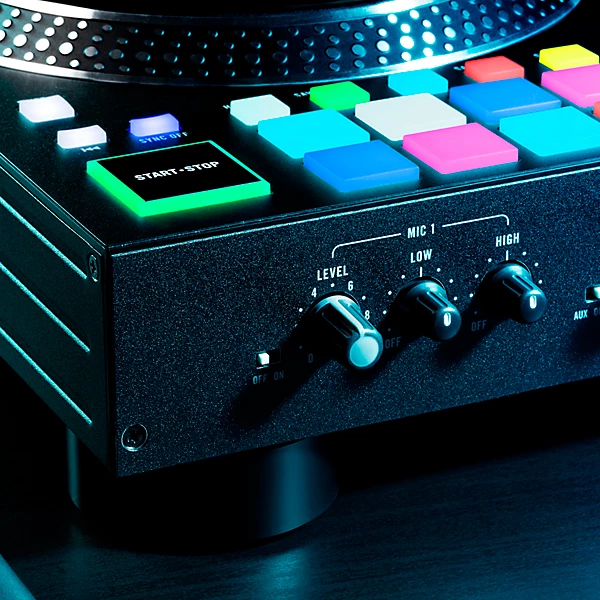

Microphone 1/2 (Combo XLR/1/4” [6.35 mm] TRS, Mic/Line switchable)
Analog Gain: 25dB
Maximum Input: 110mV
Gain Trim: Off to +26dB (unity at center)
Tone Control: 2-band
Aux Input (RCA stereo pair)
Maximum Input: 4Vrms
Dynamic Range (A-weighted): 114dB
Gain Trim: Off to +12dB
Tone Control: 2-band
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
CD: Line
Maximum Input: 4Vrms
Gain Trim: Off to +12dB
Tone Control: 3-band, full-cut to +10dB
THD+N (20kHz BW @ 1kHz): 0.004%
Phono: RIAA
RIAA Curve: +/-0.25dB
Gain (@ 1kHz): 31.5dB
Maximum Input (@ 1kHz): 106mV
Dynamic Range (A-weighted): 102dB

Outputs

Main Outputs (XLR)
Gain Trim: Off to 0dB
Maximum Output: 8Vrms
THD+N (20kHz BW @ 1kHz): 0.004%
Frequency Response: Flat
Booth Outputs (XLR)
Gain Trim: Off to 0dB
Maximum Output: 8Vrms
THD+N (20kHz BW @ 1kHz): 0.004%
Frequency Response: Flat
Master Outputs (RCA stereo pair)
Maximum Output: 4Vrms
THD+N (20kHz BW @ 1kHz): 0.004%
Frequency Response: Flat
Headphone Outputs (1/4”/6.35 mm & 1/8”/3.5 mm TRS)
Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)
Output Power: 0.004%
Dynamic Range (A-weighted): 108dB

General

Pads
16 velocity-sensitive multi-color back-lit pads (8 per deck, 8 modes each)
Faders
1 MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
2 Standard channel faders with shared Contour and Reverse controls

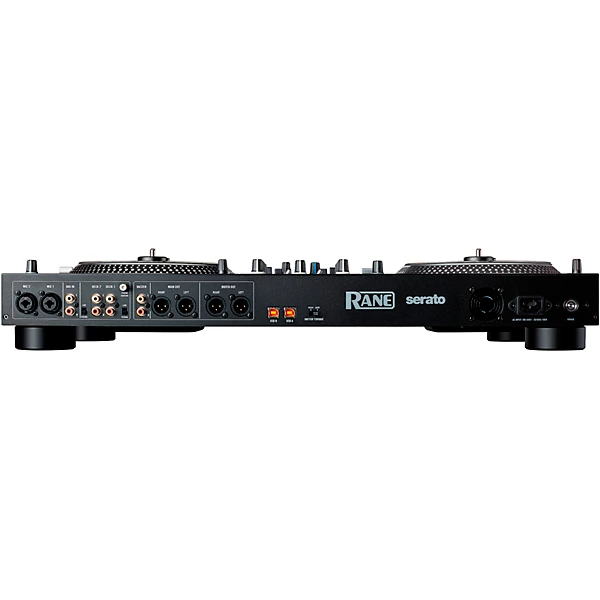

Connectors
2 XLR outputs (Main)
2 XLR outputs (Booth)
1 RCA stereo output pair (Master)
2 XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 1–2)
1 RCA stereo input pair (Aux)
1 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones)
2 USB Type-B ports
1 IEC power cable input

Power

Connection: IEC
Voltage: 100–240V, 50/60Hz
Consumption: 50W

Dimensions (WxDxH)

26.5″ x 13.6″ x 4.9″/674 x 345 x 124.3 mm

Weight (including platters)

23.55 lb./10.68 kg
