Description

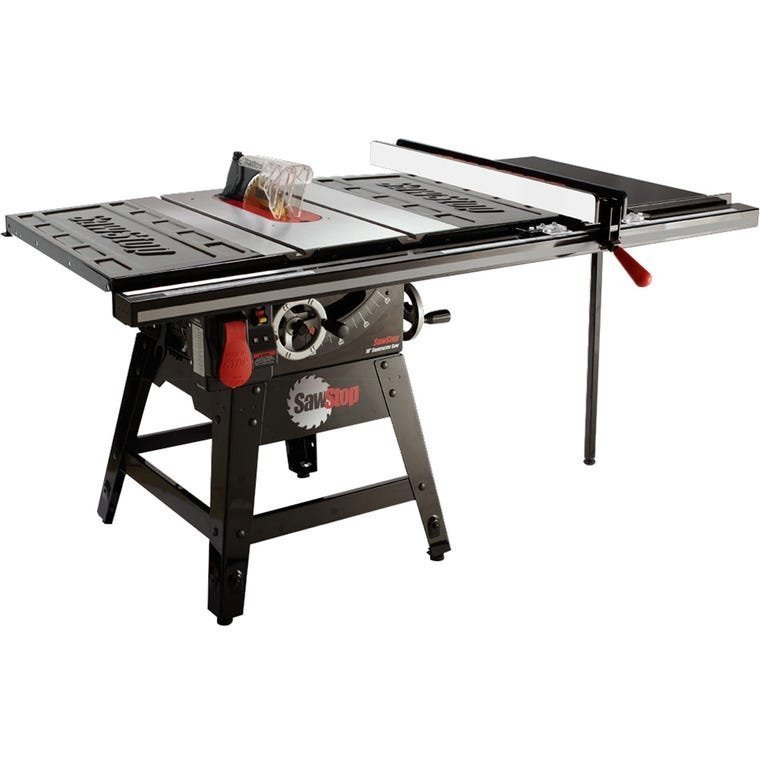

The SawStop® 110V, 1.75HP 10″ Professional Contractor Saw is engineered to fit the unique demands of the avid hobbyist in a home setting. Delivering the peerless fit and finish of the Professional Cabinet Saw, this saw’s 110V power and optimized footprint make it ideal for the many challenges of a home shop. With SawStop’s® legendary safety system, uncompromising quality and industry-leading dust collection, the 110V Professional Contractor Saw is engineered to be the cornerstone of a home shop. Mobile base sold separately (#22948).
More Information
Brand
SawStop
Manufacturer Part Number
CNS175-TGP236
Tech Spec
Motor: 1.75 hp, 1 phase, 110 V, 14 A
Weight: 225 lbs (table saw only)
Max. rip, right of blade: 36″
Cabinet footprint: 19 3/8″W x 19 3/8″D
Cast iron table: 20″W x 27″D, 44″W x 27″D (w/ extension wings)
Stamped steel extension wing: 12″W x 27″D
Blade: 40-tooth, professional grade, 5/8″ arbor
Blade diameter: 10″
Blade tilt: Left
Blade kerf: 0.118″ (3mm)
Blade plate thickness: 0.078″ (2mm)
Max. depth of cut, blade at 0°: 3-1/8″
Max. depth of cut, blade at 45°: 2-1/4″
Max. rip, left of blade: 12″
Dado diameter: 8″ (requires a separate brake cartridge and table insert)
Dado max. width: 13/16″
Arbor diameter at blade: 5/8″
Main bearing size: 62mm OD x 30mm ID
Second bearing size: 52mm OD x 25mm ID
Table in front of blade (max. elevation): 10-1/4″
Table behind blade (max. elevation): 7-1/2″
Arbor runout: 0.001″ Maximum allowable runout
Blade lateral movement over full elevation range: 0.006″ Maximum
Table flatness measured diagonally: 0.010″ Maximum gap
Overall table and extension wing flatness: 0.025″ maximum gap
Blade alignment with miter slot: 0.010″ Maximum displacement
Deviation of miter gauge indexing stops from actual: 0.25°
Alignment between spreader and blade: 0.010″ Maximum difference
Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep
Riving knife / splitter thickness: 0.078″ (2mm)
Blade guard: polycarbonate, extends only 5/8″ to right of blade
Insert: zero clearance, steel core, ABS surfaces
Hand wheels: 7″ diameter, cast iron with chrome handle
Belts: 2 V-ribbed belts – arbor belt is static dissipative
