Name: Vitaccii Pentora Racing ATV
SKU: 582
Availability: InStock

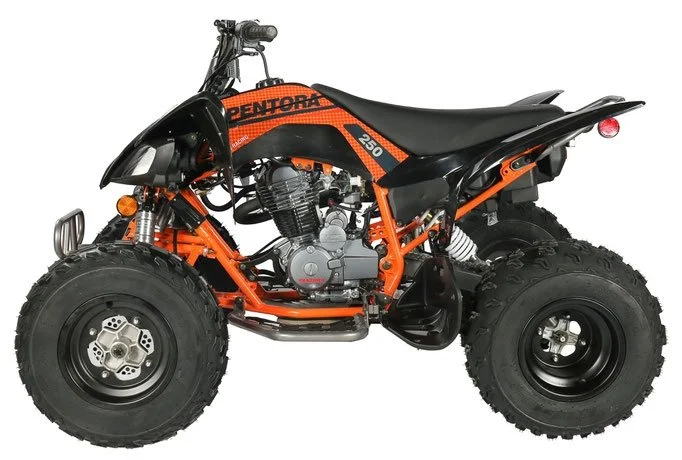

Vitaccii Pentora Racing ATV

Estimated delivery dates: May 16, 2026 - May 21, 2026

SPECIFICATION
	SPECIFICATION PARTS SPECIFICATION		L×W×H		162510601065
			WHEELBASE		1090±20mm
			FRONT WHEELBASE		820mm
			REAR WHEELBASE		830mm
			MINIMUM GROUND CLEARANCE		135±15mm
			SEAT HEIGHT		790±15 mm
			RIDE HEIGHT		225mm
			HANDLE HEIGHT		1000mm
			PACKING SIZE		1460880860mm 62pcs/40HQ
			MINIMUM TURNING CIRCLE DIAMETER		5900±500mm
			TURNING ANGLE		<45°
			RATED LOAD		100kg
			NET WEIGHT		149kg
			GROSS WEIGHT (WITH PACKING)		177kg
			F&R BRAKE		F&R HYDRAULIC DISC
			F&R BRAKE OPERATION TYPE		FRONT HAND BRAKE, REAR FOOT BRAKE
			F&R RIM		105.5AT/98.0AT
			F&R TYRE		AT207.0-10/AT1910-9
			TRANSMISSION		CHAIN
	TECHNICAL SPECIFICATION		FUEL TANK		9L`

			BATTRY		12V/7HA `
			MAXIMUM SPEED		70km/h
	SPECIFICATION		STARTING PERFORMANCE		15S
			CLIMBING PERFORMANCE		21°
			PARKING PERFORMANCE		≥18°
			EMISSION INDEX		CO (%)			≤3.8
					HC(PPm)			≤800
			db.(A)		≤82 dB(A)
		ENGINE SPECIFICATION	MODEL	LC166FMM
			TYPE	SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE
			BRAND	LONCIN
			BRORE×STROKE	65.5×66.2mm
			capacity	223mL
			COMPRESSION RATIO	9.0:1
			MAX.POWER	12（1±5%）kW /7500（1±5%）rpm
			MAX.TORQUE	17（1±5%）N · m /6000（1±5%）rpm
			Min no load speed	1500（1±10%） r /min
			min fuel consumption rate	354g / kw.h
			Fuel no.	≥RQ90
			CLUTCH METHOD	Manual
			Start	Electrical start
			cdi	C.D.I
		PARTS SPECIFICATION	carb	PZ30
			Spark plug	D8TC
			Front light	12V18-18W
		TECHNICAL SPECIFICATION	Max speed	70km/h
			Start time	15S
			break
				前轮力和			≥60%
				前轮力差			≥55%
				后轮力和			≤20%
				后轮力差			≤24%
			CLIMBING PERFORMANCE	21^°°
			PARKING PERFORMANCE	≥18%
			EMISSION INDEX	CO (%)		≤3.8
				HC(PPm)		≤800
			db(A)	≤82 dB(A)
			Starting acceleration（S）	≤8
			Speed acceleration（S）	≤8
		Parts spec	Tank capacity	9L
			Fr. & re suspension	Oil dumper
			Fr. &re suspension	L=350 m m /L=390 m m
