Name: Atlas 9,000 lbs 2 Post Baseplate Lift
SKU: 52244
Availability: InStock

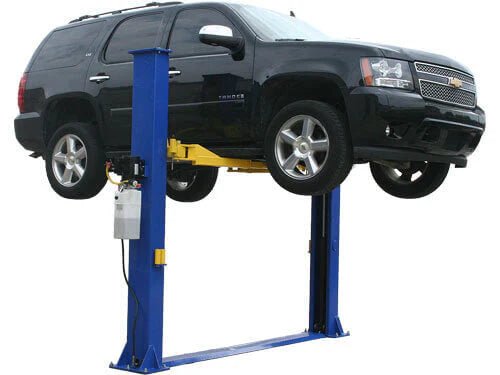

The Atlas® 9KBPX is an economically designed baseplate two-post lift great for low ceiling garages. The total column height of 111 ½” (9 feet 3 ½ inches) allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9 feet 6 inches.

The Atlas® 9KBPX “chain over roller” lift features a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain. The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Features & Benefits

9,000 lb. Capacity
Baseplate, Open-Top Style Lift
Designed For Low Ceiling Clearance – 9′ 3 ½” Columns
Symmetric Arms
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System (SLS)
Free 8 Piece Truck Adapter Set
Automatic Arm Restraints
Dual Point Lock Release
Mounting Hardware Included
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Atlas® XH-9KBPX Specifications

Capacity	9,000 lb.
Overall Height	111 1/2″ (9’ 3 1/2″)
Overall Floor Width	134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column	124 7/8″ (10’ 4 7/8″)
Maximum Lift Height (Without Adapters)	74 1/2″
Maximum Lift Height (With Adapters)	81″
Minimum Arm Height	4″
Inside Column	110” (9’ 2”)
Drive Thru	101” (8’ 5”)
Column Size	7 1/4″ x 11″
Column Thickness of Steel	5mm
Base Of Lift	14 1/4″ x 18 1/4″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)

Adapter Heights	4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size	1.5”
