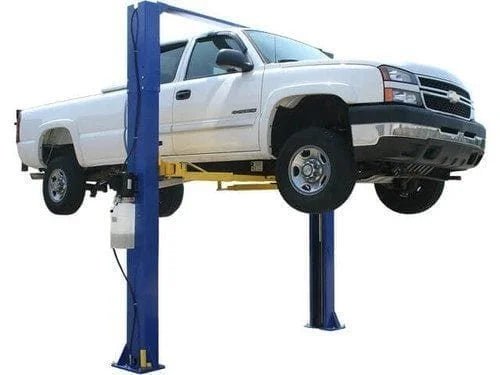

Name: Atlas 9KOHX 9,000 lb Overhead 2-Post Lift
SKU: 52245
Availability: InStock

The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.

Atlas® 9KOHX Specifications
Capacity	9,000 LB.
Overall Height	138″ (11’ 6″) or 142” (11’ 10”)
Overall Floor Width	134 1/2″ (11’ 2 1/2″)
Outside Column to Outside Column	124 7/8″ (10’ 4 7/8″)
Maximum Lift Height (Without Adapters)	74 1/2″
Maximum Lift Height (With Adapters)	81″
Minimum Arm Height	4″
Inside Column	110” (9’ 2”)
Drive Thru	100” (8’ 4”) Symmetric/ 90 1/2″ (7’ 6 1/2”) Asymmetric
Column Size	7 1/4″ x 11″
Column Thickness of Steel	5mm
Base Of Lift	14 1/4″ x 18″
Motor/Electrical Requirement	220 volt single (1) phase. A 30 amp breaker is recommended
Oil Requirement	3-5 Gallons AW32/AW46
Shipping Weight	1,450 LBS.
Adapter Heights	4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size	1.5”
